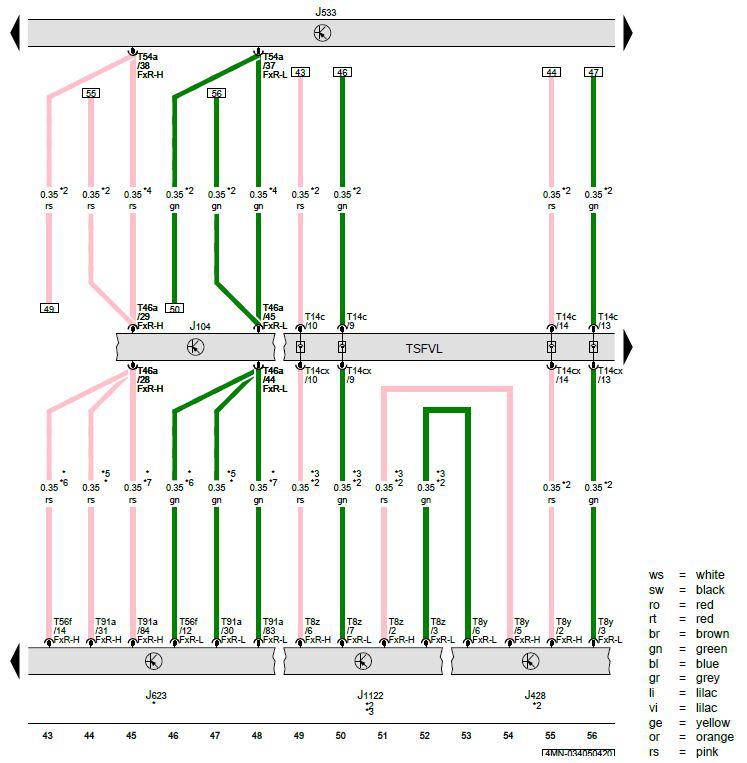

ABS Control Module, Control Module for Adaptive Cruise Control, Data Bus on Board Diagnostic Interface, Engine/ Motor Control Module, Laser Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J428 -  Control Module for Adaptive Cruise Control

J533 -  Data Bus on Board Diagnostic Interface

J623 -  Engine/Motor Control Module

J1122 -  Laser Distance Regulation Control Module

T8y -  8-Pin Connector, Black

T8z -  8-Pin Connector, Black

T14c -  14-Pin Connector, Black

T14cx -  14-Pin Connector, Brown

T46a -  46-Pin Connector, Black

T54a -  54-Pin Connector, Black

T56f -  56-Pin Connector, Black

T91a -  91-Pin Connector, Black

TSFVL -  Coupling Point on Left Front Bumper

* -  Refer to Applicable Engine Wiring Diagram

*2 -  For Vehicles with Adaptive Cruise Control (ACC)

*3 -  Depending on Equipment

*4 -  For Vehicles Without Adaptive Cruise Control (ACC)

*5 -  For Vehicles with 2.0L Gasoline Engine

*6 -  For Vehicles with Gasoline Engine

*7 -  For Vehicles with Diesel Engine
