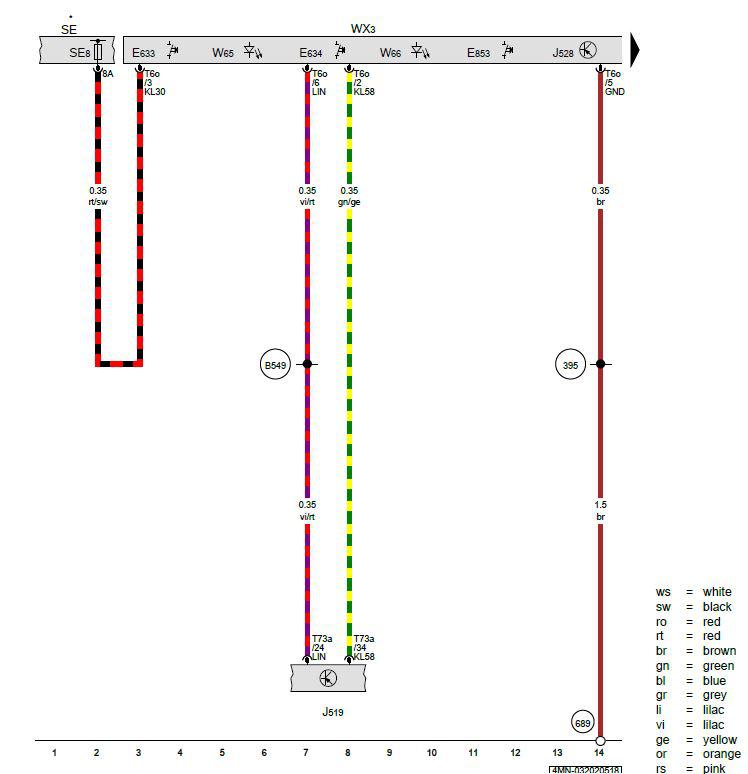

Vehicle Electrical System Control Module, Front Roof Module
E633 - Left Front Reading Lamp Button
E634 - Right Front Reading Lamp Button
E853 - Automatic Interior Light Switch Button
J519 - Vehicle Electrical System Control Module
J528 - Roof Electronics Control Module
SE - Fuse Panel E
SE8 - Fuse 8 on Fuse Panel E
T6o - 6-Pin Connector, Black
T73a - 73-Pin Connector, Black
WX3 - Front Roof Module
W65 - Left Front Reading Lamp
W66 - Right Front Reading Lamp
395 - Ground Connection 30 (in Main Wiring Harness)
689 - Ground Connection on Roof, Center Front
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for Fuse Positions
