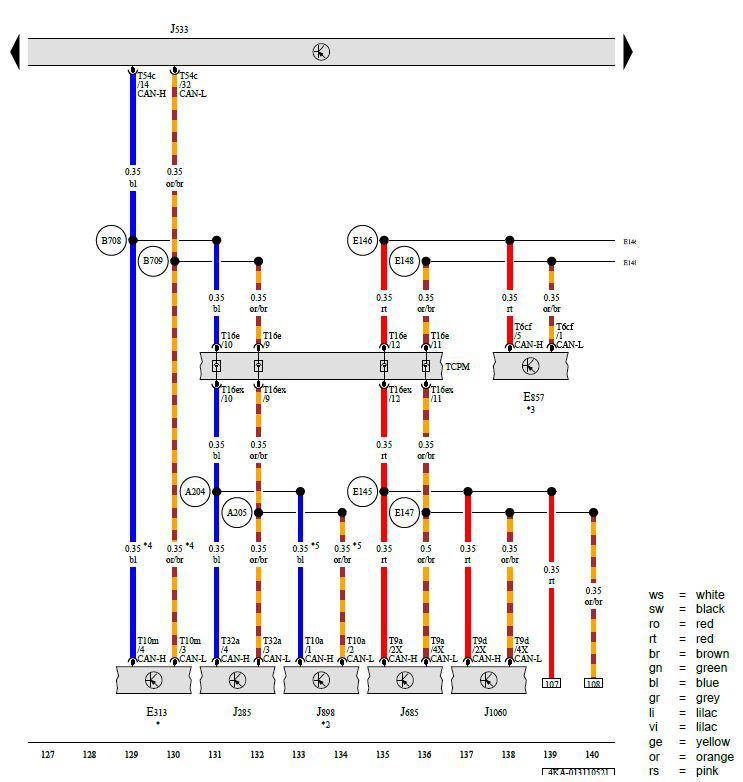

Auxiliary Display Control Head 1, Instrument Cluster Control Module, Data Bus on Board Diagnostic Interface, Windshield Projection Head Up Display Control Module
E313 - Selector Lever
E857 - Auxiliary Display Control Head 1
J285 - Instrument Cluster Control Module
J533 - Data Bus on Board Diagnostic Interface
J685 - Front Information Display Control Head
J898 - Windshield Projection Head Up Display Control Module
J1060 - Front Information Display Control Head 2
T6cf - 6-Pin Connector, Black
T9a - 9-Pin Connector, Black
T9d - 9-Pin Connector, White
T10a - 10-Pin Connector, Black
T10m - 10-Pin Connector, Black
T16e - 16-Pin Connector, Black
T16ex - 16-Pin Connector, Black
T32a - 32-Pin Connector, Gray
T54c - 54-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
A204 - Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205 - Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B708 - Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B709 - Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
E145 - Connection 1 (CAN Bus Information Electronics Control Module 1, High)
E146 - Connection 2 (CAN Bus Information Electronics Control Module 1, High)
E147 - Connection 1 (CAN Bus Information Electronics Control Module 1, Low)
E148 - Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
* - Refer to Applicable Wiring Diagram for Automatic Transmission
*2 - Refer to Applicable Windshield Projection Wiring Diagram
*3 - Refer to Applicable Seat Adjustment Wiring Diagram
*4 - For Vehicles with Automatic Transmission
*5 - For Vehicles with Windshield Projection
