RETAINING PLATE FOR Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Insert the new clips until they engage in the retaining plate -2-.
- The closed clip -1- must be seated on the retaining plate -2- at the bottom on the inside.
-- Measure the dimension -a- at all stud bolts using the Digital Caliper :VAS6335 and correct if necessary.
- Dimension -a- = 17.6 mm ± 0.5 mm.
-- Position the retaining plate with the stud bolts -1- on the Control Module for Adaptive Cruise Control -J428-.
- The stud bolts -1- must be aligned correctly to the clips -2-.

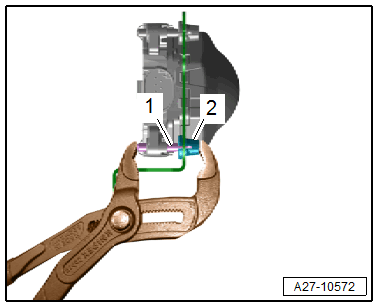

-- Push the stud bolts -1- all the way into the clips -2- as shown.
