Control Module/Digital Sound System Amplifier, Removing And Installing: Notes
Special tools and workshop equipment required
- Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9 .
- Torque Screwdriver: VAG1624

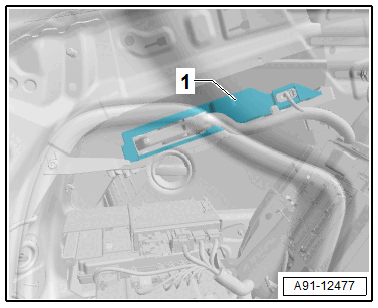

The Digital Sound System Control Module -J525- -1- is located behind the left luggage compartment side trim panel.
NOTE:
If replacing the control module, select the "Replace control module" function for the corresponding control module on the Vehicle Diagnostic Tester.
