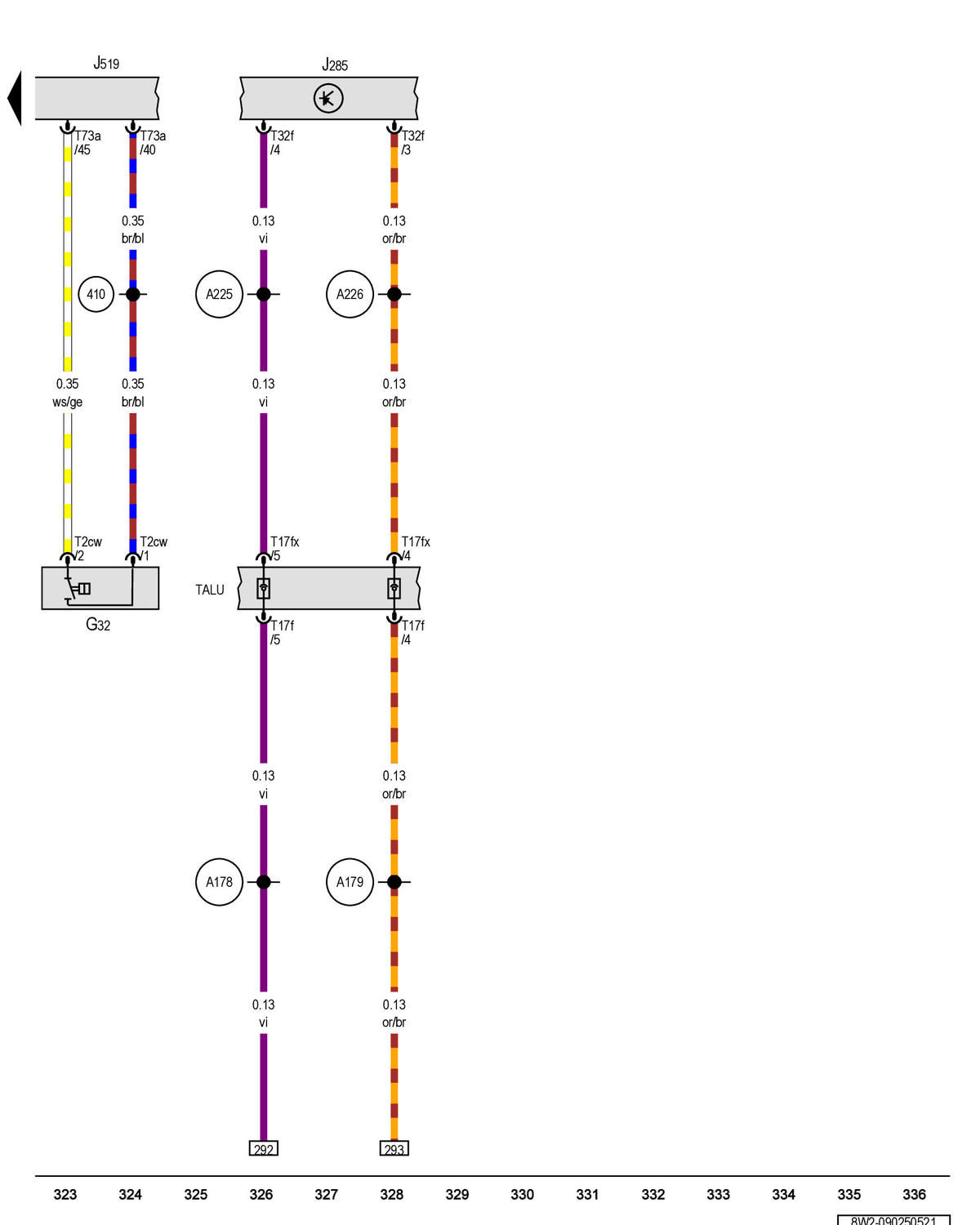

Engine Coolant Level Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

G32

Engine Coolant Level Sensor

J285

Instrument Cluster Control Module Type:BT, Slpdok:, Aim:BTJ285

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

T2cw

2-Pin Connector, Black

T17f

17-Pin Connector, Red

T17fx

17-Pin Connector, Red

T32f

32-Pin Connector, Gray

T73a

73-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom Type:BT, Slpdok:, Aim:BTTALU

410

Sensor Ground Connection 1 (in Main Wiring Harness)

A178

Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179

Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

A225

Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)

A226

Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
