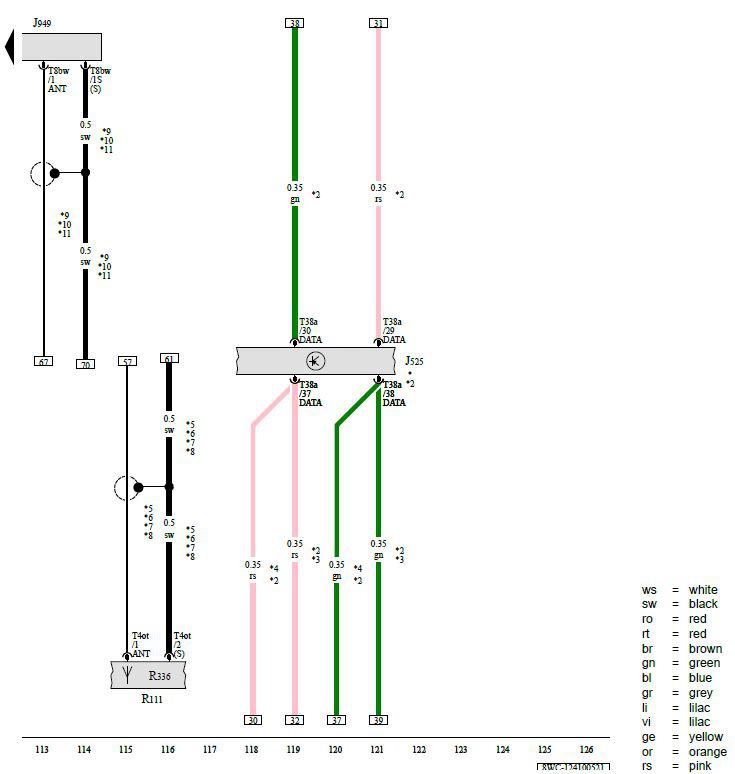

Digital Sound System Control Module, Control Module for Emergency Call Module and Communication Unit, Antenna Amplifier 2
J525 - Digital Sound System Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
R111 - Antenna Amplifier 2
R336 - Wireless Data Transfer Antenna
T4ot - 4-Pin Connector, Brown
T8bw - 8-Pin Connector, Black
T38a - 38-Pin Connector, Black
* - Refer to Applicable Sound System Wiring Diagram
*2 - For Vehicles with Bang & Olufsen Sound System
*3 - Through November 2019
*4 - From December 2019
*5 - Sedan
*6 - From July 2020
*7 - For Vehicles with Japan Equipment
*8 - For Vehicles with Cell Phone/Telephone
*9 - For Vehicles with China Equipment
*10 - From December 2021
*11 - For Vehicles with External Vehicle Communication
