Distance Regulation Control Module -J428-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .
-- Remove the upper air duct. Refer to OVERVIEW - RADIATOR/RADIATOR FAN .

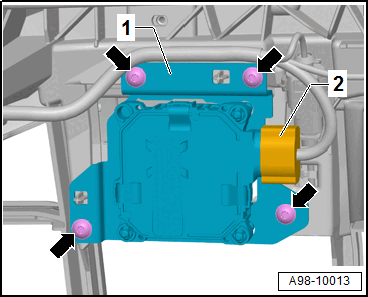

-- Remove the bolts -arrows-.
-- Remove the retaining plate -1- with the Control Module for Adaptive Cruise Control -J428- from the bumper cover.
-- Clean and dry the Control Module for Adaptive Cruise Control -J428- near the connector.
-- Release and disconnect the connector -2-.
