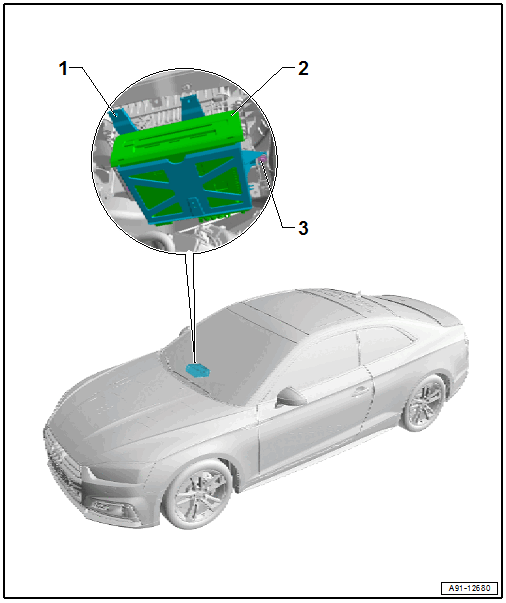

Component Location Overview - Navigation System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Bolt
- 3 Nm
- Quantity: 2
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- The appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
