External Multimedia Device Connection, Removing And Installing: Notes

WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.

The external multimedia device connection -1- is located in the front and rear center console storage compartment.

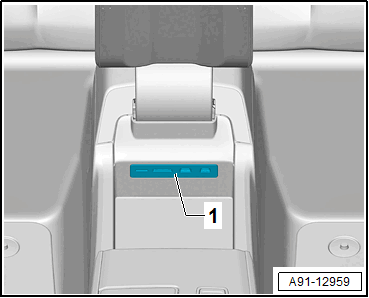

Front Center Console Storage Compartment, USB DistributorR293 1

Fig 1: Front Center Console Storage Compartment, USB Distributor -R293- -1-

Courtesy of AUDI OF AMERICA, LLC

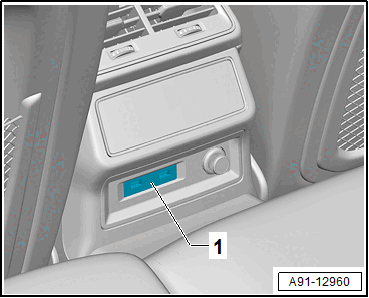

Rear Center Console Trim, USB Connection 1U41 1

Fig 2: Component Location - USB Connection 1 -U41- in Rear Center Console Trim

Courtesy of AUDI OF AMERICA, LLC
