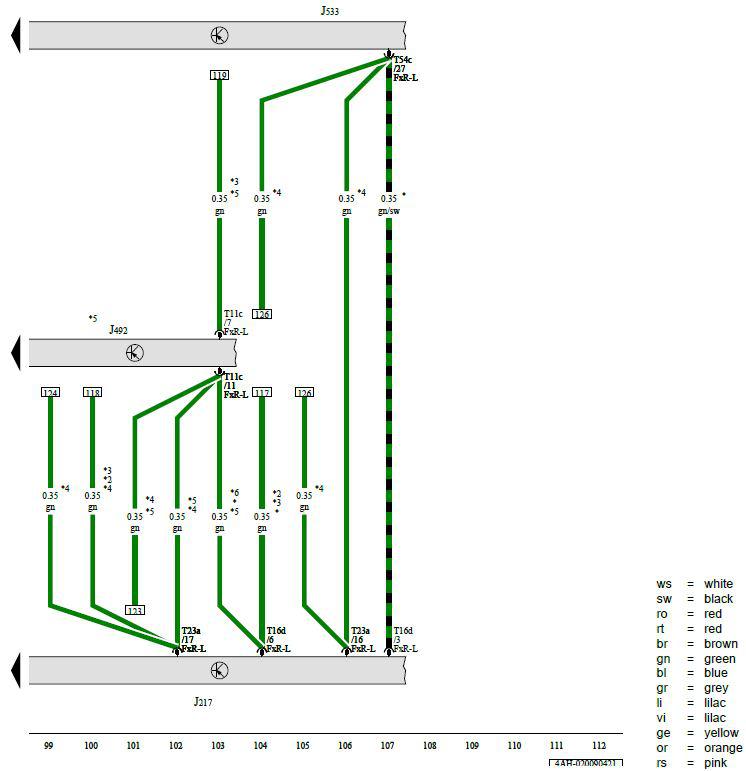

Transmission Control Module, All-Wheel Drive Control Module, Data Bus on Board Diagnostic Interface
J217 - Transmission Control Module
J492 - All-Wheel Drive Control Module
J533 - Data Bus on Board Diagnostic Interface
T11c - 11-Pin Connector, Black
T16d - 16-Pin Connector, Black
T23a - 23-Pin Connector, Black
T54c - 54-Pin Connector, Black
* - For Vehicles with 8-Speed Automatic Transmission
*2 - For Vehicles Without All-Wheel Drive
*3 - For Vehicles with Electromechanical Power Steering
*4 - Depending on Equipment
*5 - For AWD Vehicles
*6 - Omitted as a Running Change
