Overview - Laser Distance Regulation Control Module
- Cover
- With Heating Element for Adaptive Cruise Control Radar Sensor - Z185-
- Removing and Installing. Refer to Heating Element for Adaptive Cruise Control Radar Sensor - Z185-, REMOVING AND INSTALLING .
- Cover
- Laser Distance Regulation Control Module -J1122-
- Removing and Installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Adjust the adaptive cruise control. Refer to ADAPTIVE CRUISE CONTROL (ACC), ADJUSTING .
- Mount
- For Laser Distance Regulation Control Module -J1122-
- Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Cover
- Bolt
- 6 Nm
- Quantity: 2
- Spring
- Adjuster
- Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at the adjuster using the Digital Caliper: VAS6335 and correct if necessary. .
- Bolt
- 6 Nm
- Spray Nozzles
- For Laser Distance Regulation Control Module -J1122-
- Different component locations
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
- Washer Fluid Hose
- From the window washer pump
- Operating Lever for Adaptive Cruise Control
- Shared component with the steering column switch module. Cannot be replaced separately
- Removing and Installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING
- Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 4
- Control Module for Adaptive Cruise Control -J428-
- Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .
- Adjust the adaptive cruise control. Refer to ADAPTIVE CRUISE CONTROL (ACC), ADJUSTING .
- Clip
- Must be replaced when the stud bolt is removed
- Replacing. Refer to CLIPS FOR Control Module for Adaptive Cruise Control -J428-, REPLACING .
- Quantity: 3
- Stud Bolt
- Note the adjustment dimension. Refer to Installing - Measure the dimension .
- Quantity: 3
- Clip
- Open version
- Cannot be removed without being damaged
- Quantity: 2
- Clip
- Closed version
- Cannot be removed without being damaged
- Note the installation position
- Bolt
- Tightening specification. Refer to -Item ) Bolt.
- Quantity: 4
- Retaining Plate
- Removing and Installing. Refer to RETAINING PLATE FOR CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .

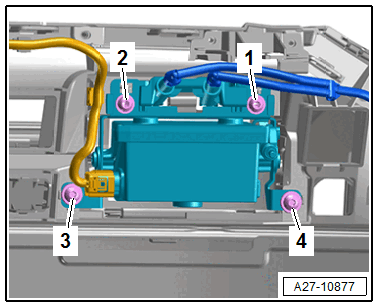

Laser Distance Regulation Control Module, Tightening Specification and Sequence
-- Tighten the bolts to 4 Nm in the order shown.
