Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, 8RF: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

The bracket -2- with the Digital Sound System Control Module -J525- -1- must be removed first.

Courtesy of AUDI OF AMERICA, LLC

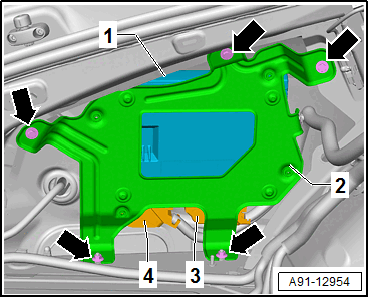

-- Remove the bolts -arrows- from the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot out the bracket -2- with the Digital Sound System Control Module -J525- -1-.

-- Release and disconnect the connectors from the Digital Sound System Control Module -J525- -1-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  -1- onto the MOST Bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

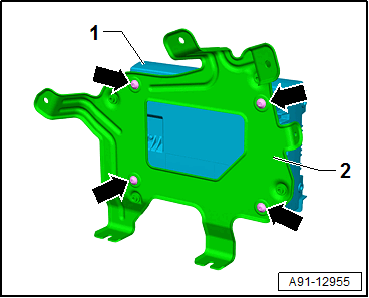

-- Remove the bolts -arrows- from the bracket -2- and remove the Digital Sound System Control Module -J525- -1- from the bracket.

Courtesy of AUDI OF AMERICA, LLC
