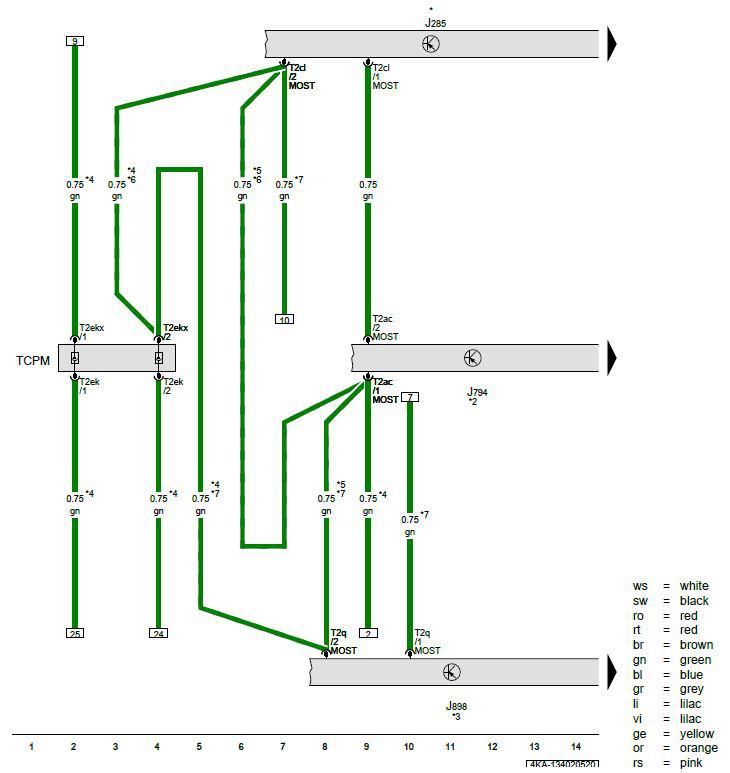

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J794 -  Information Electronics Control Module 1

J898 -  Windshield Projection Head Up Display Control Module

T2ac -  2-Pin Connector, Black

T2cl -  2-Pin Connector, Black

T2ek -  2-Pin Connector, Black

T2ekx -  2-Pin Connector, Black

T2q -  2-Pin Connector, Black

TCPM -  Coupling Point on Instrument Panel, Center

* -  Refer to Applicable Wiring Diagram for Instrument Cluster

*2 -  Refer to Applicable MMI (Information Electronics) Wiring Diagram

*3 -  Refer to Applicable Windshield Projection Wiring Diagram

*4 -  For Vehicles with TV Tuner

*5 -  For Vehicles Without TV Tuner

*6 -  For Vehicles Without Windshield Projection

*7 -  For Vehicles with Windshield Projection
