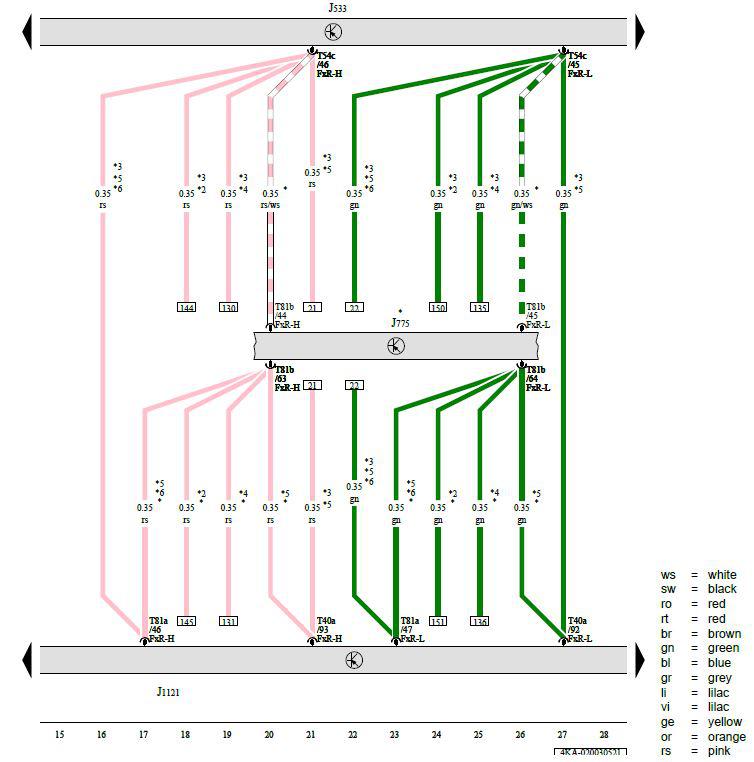

Data Bus on Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Control Module
J533 - Data Bus on Board Diagnostic Interface
J775 - Drivetrain Control Module
J1121 - Driver Assistance Systems Control Module
T40a - 40-Pin Connector, Black
T54c - 54-Pin Connector, Black
T81a - 81-Pin Connector, Black
T81b - 81-Pin Connector, Black
* - For Vehicles with Level Control System
*2 - For Vehicles with Electromechanical Power Steering
*3 - For Vehicles Without Level Control System
*4 - For Vehicles with Active Steering
*5 - For Driver Assistance System
*6 - Optional Equipment
