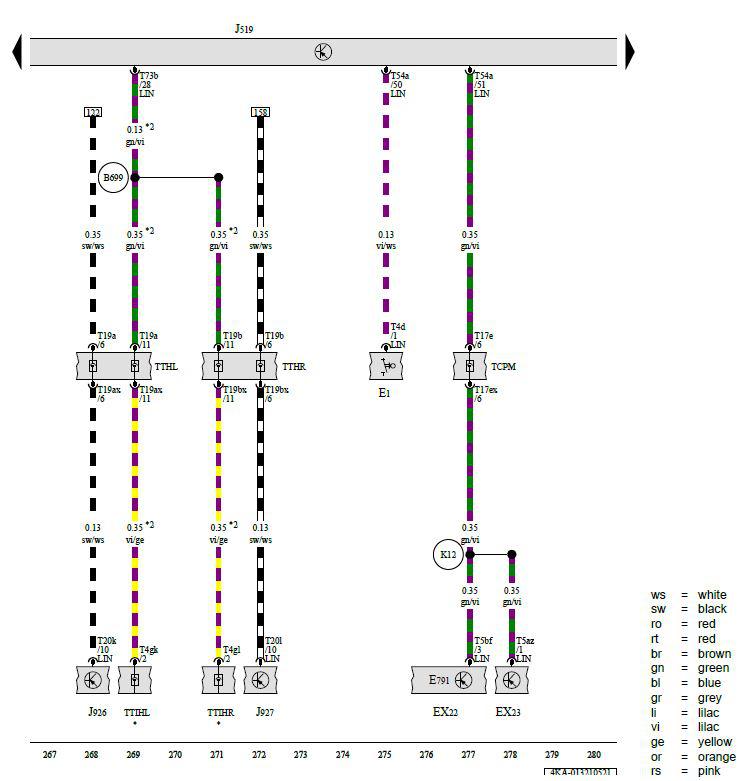

Light Switch, Center Instrument Panel Switch Module, Center Console Switch Module 1, Vehicle Electrical System Control Module, Driver Side Rear Door Control Module, Passenger Side Rear Door Control Module, Coupling Point in Right Rear Door
E1 - Light Switch
EX22 - Center Instrument Panel Switch Module
EX23 - Center Console Switch Module 1
E791 - Control Unit 1 for Driving and Convenience Functions
J519 - Vehicle Electrical System Control Module
J926 - Driver Side Rear Door Control Module
J927 - Passenger Side Rear Door Control Module
T4d - 4-Pin Connector, Red
T4gk - 4-Pin Connector, Black
T4gl - 4-Pin Connector, Black
T5az - 5-Pin Connector, Black
T5bf - 5-Pin Connector, Brown
T17e - 17-Pin Connector, Black
T17ex - 17-Pin Connector, Black
T19a - 19-Pin Connector, Black
T19ax - 19-Pin Connector, Black
T19b - 19-Pin Connector, Black
T19bx - 19-Pin Connector, Black
T20k - 20-Pin Connector, White
T20l - 20-Pin Connector, White
T54a - 54-Pin Connector, Black
T73b - 73-Pin Connector, Black, Black
TCPM - Coupling Point on Instrument Panel, Center
TTHL - Left Rear Door Coupling Point
TTHR - Right Rear Door Coupling Point
TTIHL - Coupling Point in Left Rear Door
TTIHR - Coupling Point in Right Rear Door
B699 - LIN Bus Connection 4 (in Main Wiring Harness)
K12 - LIN Bus Connection (in Center Console Wiring Harness)
* - Refer to Applicable Wiring Diagram
*2 - For Vehicles with Ambient Lighting
