Overview - Windshield

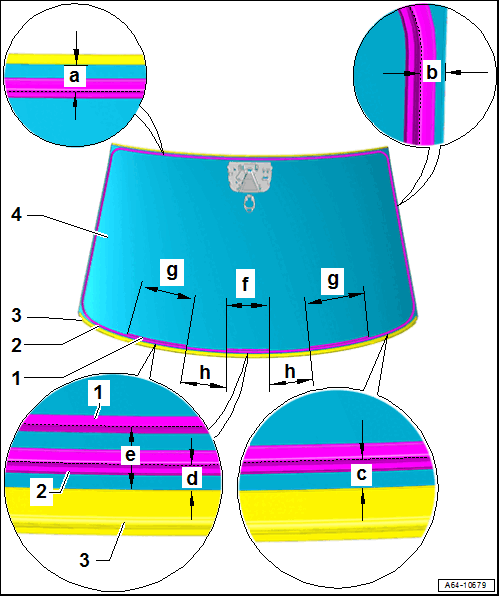

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Adhesive Bead
- Upper
- Market-Specific Version
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
A6:
- Different spaces:
- Dimension -e- = 17.8 mm
- Dimension -f- = 187 mm
- Dimension -g- = 263 mm
- Dimension -h- = 180 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
A7 Sportback:
- Different spaces:
- Dimension -e- = 18.1 mm
- Dimension -f- = 18.7 mm
- Dimension -g- = 263 mm
- Dimension -h- = 181 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
A6:
- Different distances to window edge:
- Dimension -a- = 7.5 mm
- Dimension -b- = 7.6 mm
- Dimension -c- = 7.2 mm
- Dimension -d- = 7.1 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Positioning of the double adhesive bead refer to item 1
A7 Sportback:
- Different distances to window edge:
- Dimension -a- = 7.7 mm
- Dimension -b- = 7.7 mm
- Dimension -c- = 8.3 mm
- Dimension -d- = 8.4 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Positioning of the double adhesive bead refer to item 1
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Plenum Chamber Cover Frame
- Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- Center the side distance to the A-pillars
- Distance from the windshield to the upper window frame. Refer to Cover Profile, Mounting on Undamaged Windshield: => Adjust the distance from the windshield -1- to the upper window frame. .
Protective Molding, Removing
-- For a new windshield -3-, the protective molding -1- must first be removed from the frame -2- before assembling the plenum chamber cover.
