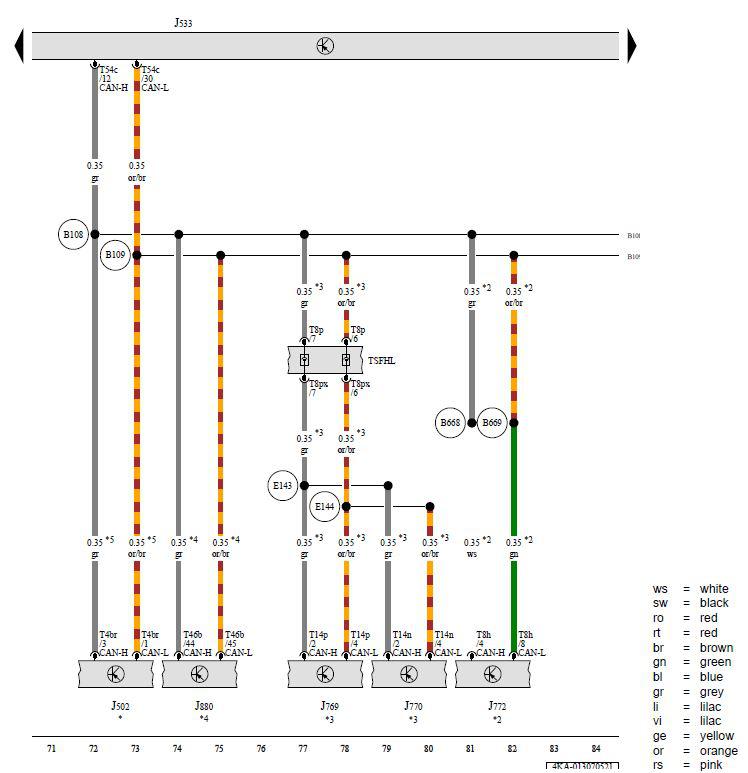

Tire Pressure Monitoring Control Module, Data Bus on Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Rearview Camera System Control Module, Reducing Agent Metering System Control Module
J502 - Tire Pressure Monitoring Control Module
J533 - Data Bus on Board Diagnostic Interface
J769 - Lane Change Assistance Control Module
J770 - Lane Change Assistance Control Module 2
J772 - Rearview Camera System Control Module
J880 - Reducing Agent Metering System Control Module
T4br - 4-Pin Connector, Gray
T8h - 8-Pin Connector, Black
T8p - 8-Pin Connector, Black
T8px - 8-Pin Connector, Black
T14n - 14-Pin Connector, Black
T14p - 14-Pin Connector, Black
T46b - 46-Pin Connector, Black
T54c - 54-Pin Connector, Black
TSFHL - Coupling Point on Left Rear Bumper
B108 - CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109 - CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668 - CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669 - CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
E143 - Connection 1 (CAN Bus Extended High) (in Rear Bumper Wiring Harness)
E144 - Connection 1 (CAN Bus Extended Low) (in Rear Bumper Wiring Harness)
* - Refer to Applicable Wiring Diagram for the Tire Pressure Monitoring System
*2 - For Vehicles with Rearview Camera System
*3 - For Vehicles with Lane Change Assistance
*4 - For Vehicles with Reducing Agent Metering System
*5 - For Vehicles with Tire Pressure Monitoring
