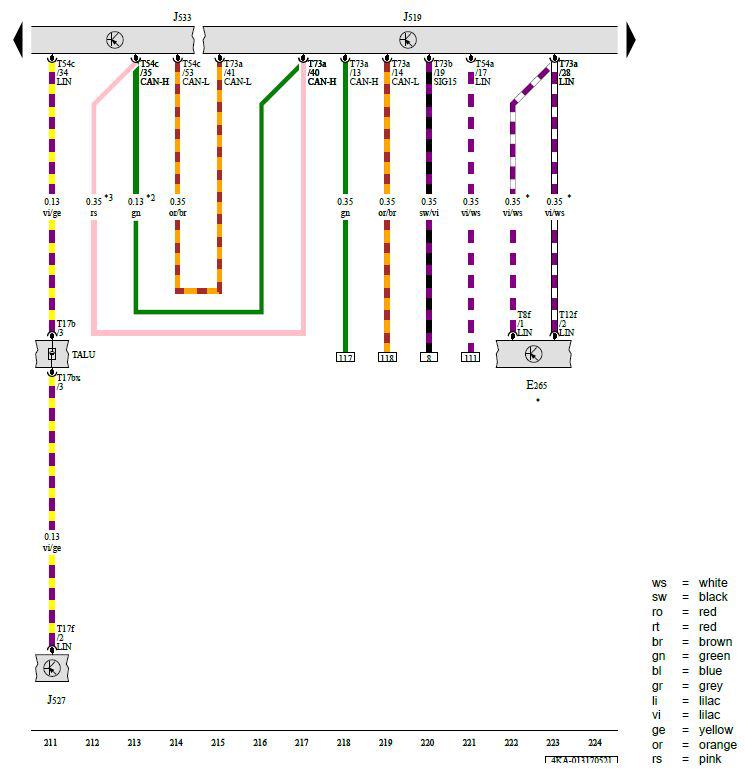

Rear A/C Display Control Head, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

E265 -  Rear A/C Display Control Head

J519 -  Vehicle Electrical System Control Module

J527 -  Steering Column Electronics Control Module

J533 -  Data Bus on Board Diagnostic Interface

T8f -  8-Pin Connector, Black

T12f -  12-Pin Connector, Black

T17b -  17-Pin Connector, Blue

T17bx -  17-Pin Connector, Blue

T17f -  17-Pin Connector, Yellow

T54a -  54-Pin Connector, Black

T54c -  54-Pin Connector, Black

T73a -  73-Pin Connector, Black, Naturally Cloudy

T73b -  73-Pin Connector, Black, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

* -  Refer to Applicable A/C System Wiring Diagram

*2 -  Omitted as a Running Change

*3 -  Running Change
