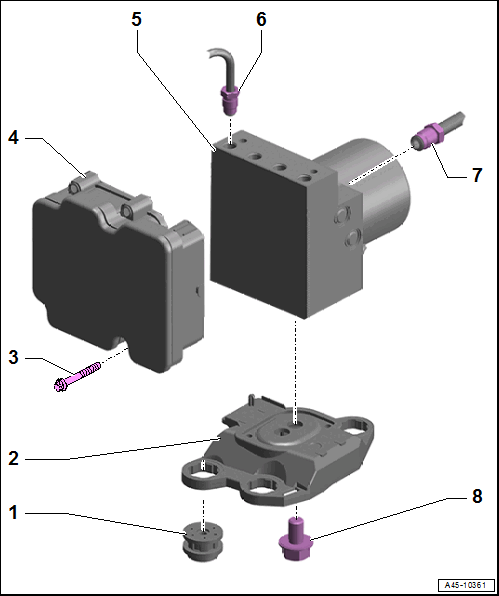

Control Module and Hydraulic Unit
- Rubber Bushing
- Bracket
- Bolt
- Step 1: 1 to 1.5 Nm (to position the seal)
- Step 2: 2.5 Nm
- Tighten in two steps alternating from side to side.
- Replace the bolts after removing
- ABS Control Module -J104-
- If the ABS Control Module -J104- is faulty, it can be replaced separately.
- If the ABS Hydraulic Unit -N55- is faulty, it must be replaced together with the ABS Control Module -J104-.
- Refer to ABS Control Module -J104- / ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING
- Can be replaced separately if faulty.
- Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT
- Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT
- ABS Hydraulic Unit -N55-
- If the ABS Control Module -J104- is faulty, it can be replaced separately.
- If the ABS Hydraulic Unit -N55- is faulty, it must be replaced together with the ABS Control Module -J104-.
- Brake Line
- 14 Nm
- 5.25 mm diameter and union bolt with M12x1 thread
- To the brake caliper
- Brake Line
- 16 Nm
- From brake master cylinder to the hydraulic unit
- 6 mm diameter and union bolt with M12x1 thread
- Bolt
- 25 Nm
- For the bracket
