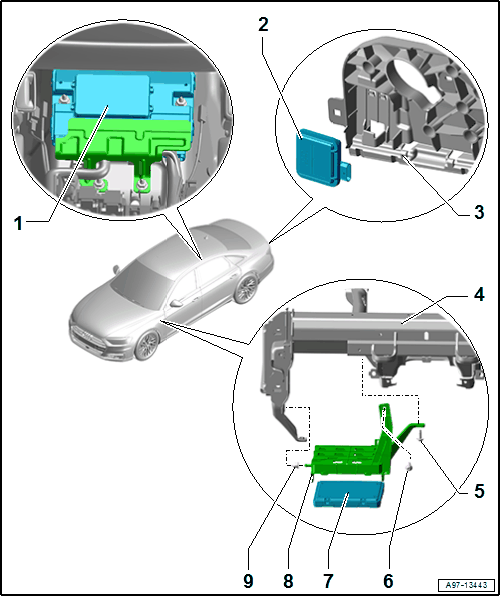

Component Location Overview - Control Modules

Courtesy of AUDI OF AMERICA, LLC

Data Bus on Board Diagnostic Interface -J533-
- There are different versions. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
Mount
- For the Garage Door Opener Control Module -J530-
Instrument Panel Crossmember
Bolt
- 3 Nm
Bolt
- 3 Nm
Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Mount
- For the Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519- MOUNT, REMOVING AND INSTALLING .
Clip Nut
