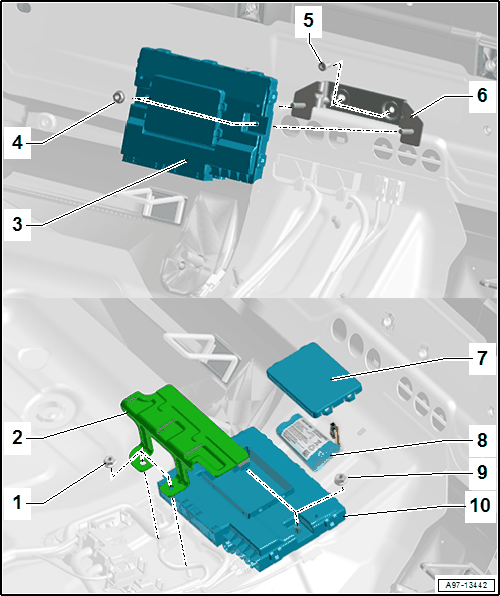

Overview - Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • 3 Nm
   • Quantity: 2
2. Connector Cover
   • For the Data Bus On Board Diagnostic Interface -J533- - 5-Seater
3. Data Bus on Board Diagnostic Interface -J533-
   • For 4-Seater
   • Removing and installing. Refer to Data Bus On Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, 4-SEATER VERSION .
4. Nut
   • 3 Nm
   • Quantity: 2
5. Bolt
   • 8 Nm
   • Quantity: 2
6. Mount
   • For the Data Bus On Board Diagnostic Interface -J533- - 4-Seater
7. Cover
   • For the telematics emergency battery
8. Battery
   • For telematics during emergency
   • Replacing. Refer to TELEMATICS EMERGENCY BATTERY, REMOVING AND INSTALLING .
9. Nut
   • 3 Nm
   • Quantity: 2
10. Data Bus on Board Diagnostic Interface -J533-
    • For 5-seater
    • Removing and installing. Refer to Data Bus On Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, 5-SEATER VERSION .
