Engine Number/Engine Specifications

Engine Number

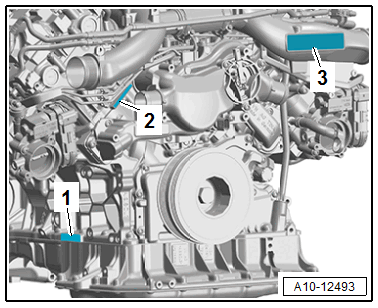

• The engine number is located on the front -2- and right -1- on the cylinder block.

  Courtesy of AUDI OF AMERICA, LLC

• A sticker -3- with the "Engine Code" and "Serial number" is applied on the air duct pipe.
• The engine code is also included on the vehicle data labels.

Engine Specifications

Engine code allocation. Refer to [For engine(s) CXYA] Engine Overview .
