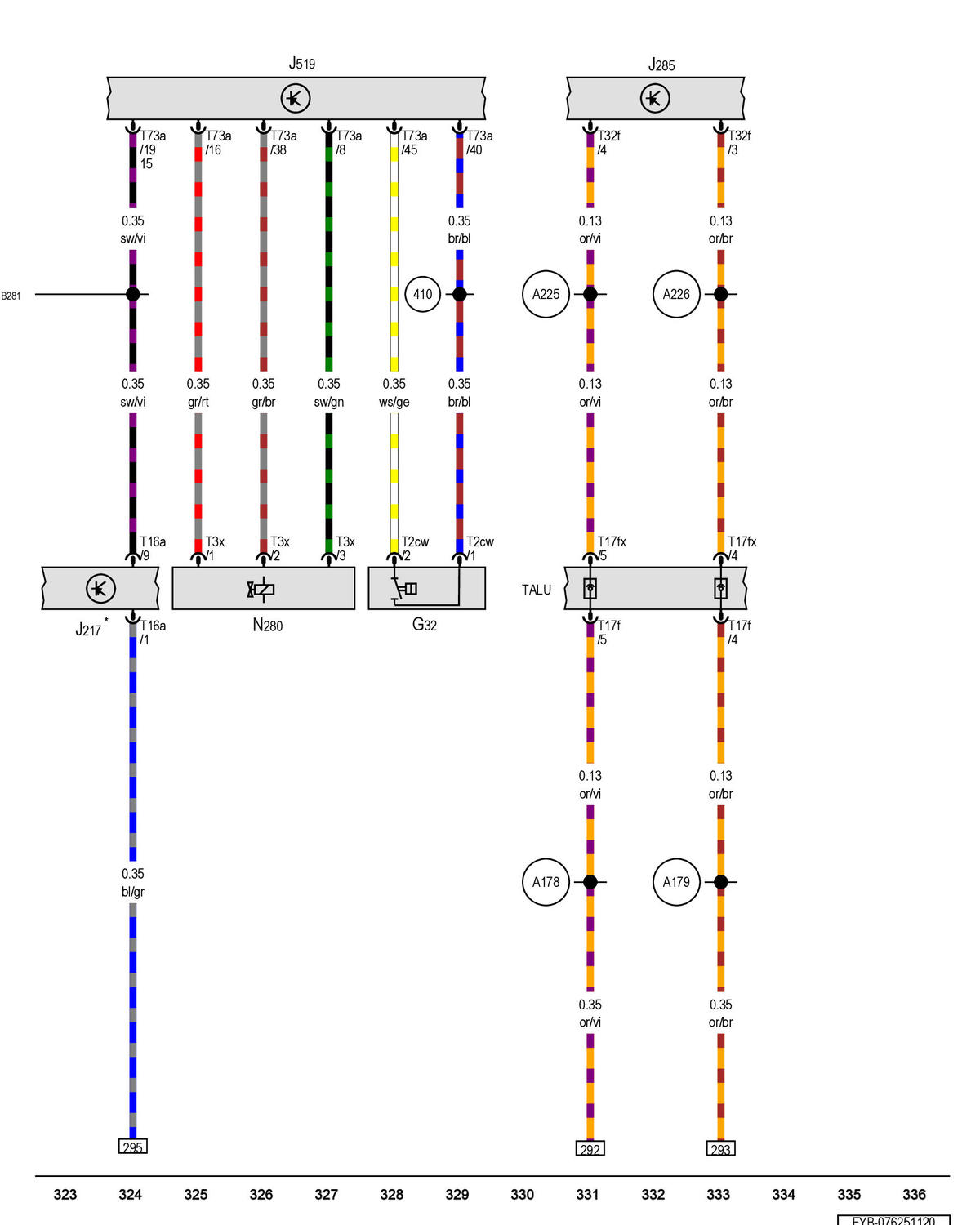

Engine Coolant Level Sensor, Transmission Control Module, Instrument Cluster Control Module, Vehicle Electrical System Control Module, A/C Compressor Regulator Valve
G32 - Engine Coolant Level Sensor
J217 - Transmission Control Module
J285 - Instrument Cluster Control Module
J519 - Vehicle Electrical System Control Module
N280 - A/C Compressor Regulator Valve
T2cw - 2-Pin Connector, Black
T3x - 3-Pin Connector, Black
T16a - 16-Pin Connector, Black
T17f - 17-Pin Connector, Red
T17fx - 17-Pin Connector, Red
T32f - 32-Pin Connector, Gray
T73a - 73-Pin Connector, Black
TALU - Coupling Point on Left A-Pillar, Bottom
410 - Sensor Ground Connection 1 (in Main Wiring Harness)
A178 - Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179 - Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225 - Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226 - Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
B281 - Positive Connection 5 (15a) (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for Automatic Transmission
