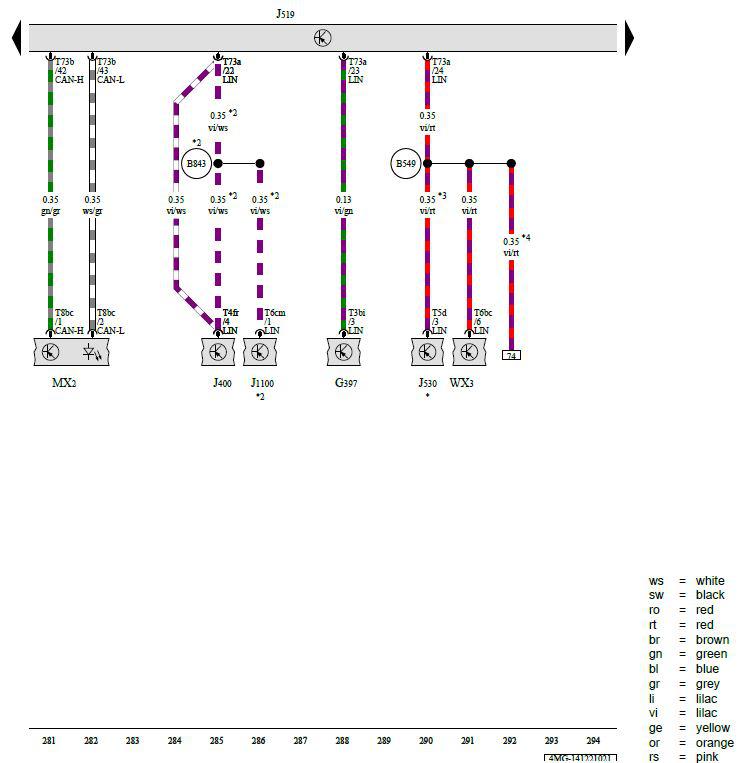

Rain/Light Recognition Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Garage Door Opener Control Module, Windshield Washer Pump Control Module, Right Front Headlamp, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

G397 -  Rain/Light Recognition Sensor

J400 -  Wiper Motor Control Module

J519 -  Vehicle Electrical System Control Module

J530 -  Garage Door Opener Control Module

J1100 -  Windshield Washer Pump Control Module

MX2 -  Right Front Headlamp

T3bi -  3-Pin Connector, Black

T4fr -  4-Pin Connector, Black

T5d -  5-Pin Connector, Black

T6bc -  6-Pin Connector, Black

T6cm -  6-Pin Connector, Black

T8bc -  8-Pin Connector, Black

T73a -  73-Pin Connector, Black, Black

T73b -  73-Pin Connector, Black, Naturally Cloudy

WX3 -  Front Roof Module

B549 -  LIN Bus Connection 2 (in Main Wiring Harness)

B843 -  LIN Bus Connection 9 (in Main Wiring Harness)

* -  Refer to Applicable Wiring Diagram for the Garage Door Opener

*2 -  Optional Equipment

*3 -  For Vehicles with Garage Door Opener

*4 -  For Vehicles with Automatic Dimming Interior Rearview Mirror
