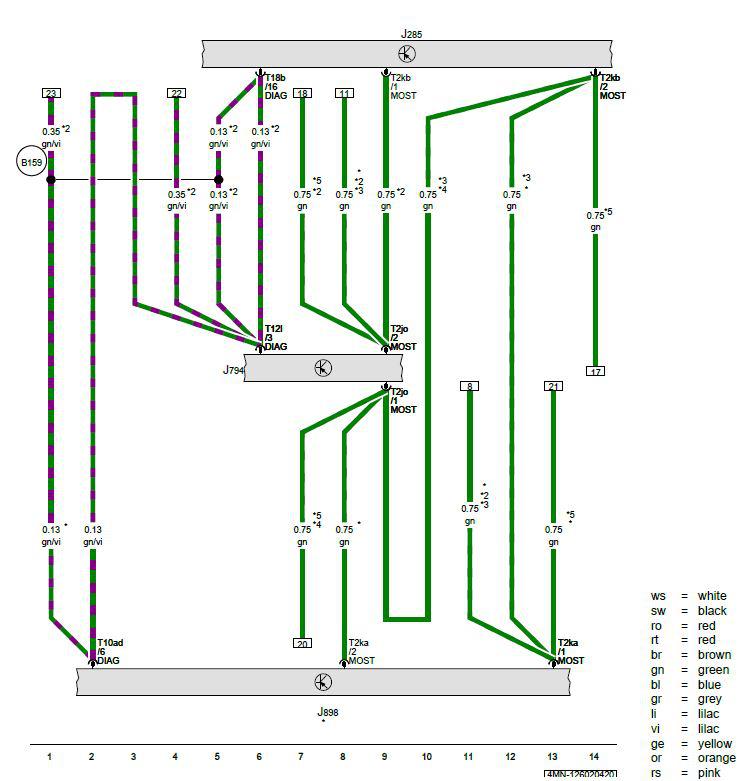

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J794 -  Information Electronics Control Module 1

J898 -  Windshield Projection Head Up Display Control Module

T2jo -  2-Pin Connector, Black

T2ka -  2-Pin Connector, Black

T2kb -  2-Pin Connector, Black

T10ad -  10-Pin Connector, Black

T12l -  12-Pin Connector, Gray

T18b -  18-Pin Connector, Black

B159 -  Diagnostic Connection (in Interior Wiring Harness)

* -  For Vehicles with Windshield Projection

*2 -  Depending on Equipment

*3 -  For Vehicles Without TV Tuner

*4 -  For Vehicles Without Windshield Projection

*5 -  For Vehicles with TV Tuner
