Window Guide, Removing And Installing: Installing

Installation in reverse order of removal and note the following:

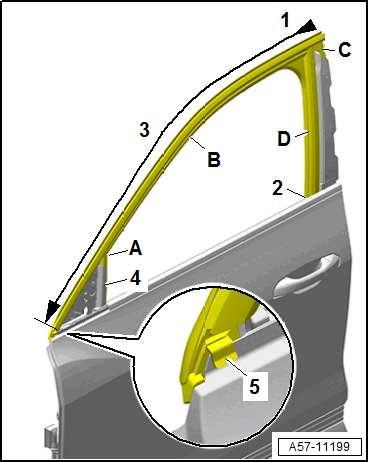

-- Install the window guide -B- on the door flange in the sequence -1 through 5-.

Courtesy of AUDI OF AMERICA, LLC

Step
1.	-- Position the upper edge of the window guide on the B-pillar door flange and push it forward in the direction of travel.
	The corner -C- of the window guide must be flush on the B-pillar door flange.
2.	-- Mount the B-pillar trim (refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT ) and insert the window guide -D- in the guide rail.
3.	-- Install the window guide -B- on the door flange.
	Fold the window guide sealing lip over the inside of the door flange.
4.	-- Insert the window guide -A- in the guide rail.
5.	-- Push the plastic hook on the door flange.
