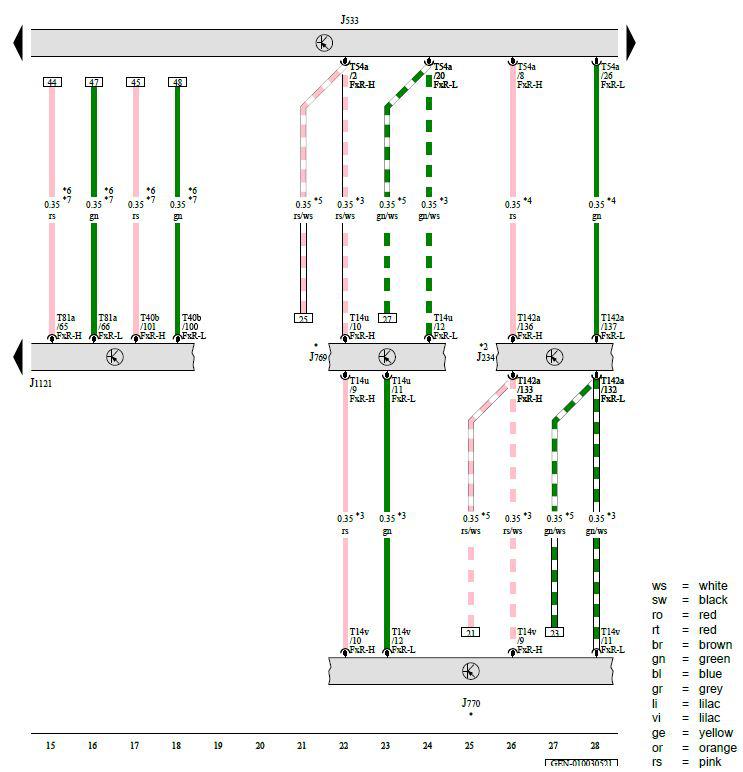

Airbag Control Module, Data Bus on Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J533 -  Data Bus on Board Diagnostic Interface

J769 -  Lane Change Assistance Control Module

J770 -  Lane Change Assistance Control Module 2

J1121 -  Driver Assistance Systems Control Module

T14u -  14-Pin Connector, Black

T14v -  14-Pin Connector, Black

T40b -  40-Pin Connector, Black

T54a -  54-Pin Connector, Black

T81a -  81-Pin Connector, Black

T142a -  142-Pin Connector, Yellow

* -  Refer to Applicable Lane Change Assistance Wiring Diagram

*2 -  Refer to Applicable Airbag Wiring Diagram

*3 -  For Vehicles with Lane Change Assistance

*4 -  For Vehicles with Adaptive Cruise Control (ACC)

*5 -  For Vehicles Without Lane Assistance

*6 -  Depending on Equipment

*7 -  For Driver Assistance System
