Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .

-- To prevent damage, cover the upper edge of the interior rearview mirror with adhesive tape.

-- Unclip the cover -1- using the clip release lever from the Scraper Set:VAS6845 -arrows A, B and C- by carefully inserting the clip release lever between the windshield and the cover.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the opposite side.

-- Disengage the front cover and remove toward the rear.

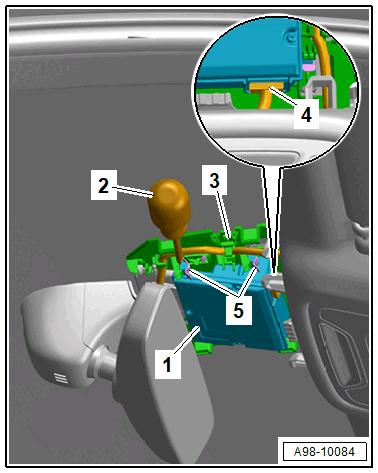

-- Place the screwdriver -2- to the retaining pin as shown and slowly remove the front camera -1- from the retaining pins -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front camera from the side guide at the baseplate -3-.

-- Disconnect the connector -4- and remove the front camera.

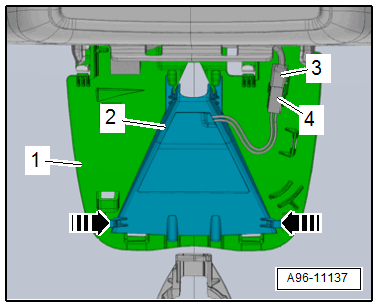

Lens, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Free up the connector -4- and disconnect the connector -3-.

-- Press the retainers in the direction of -arrow- and remove the lens -2- downward from the baseplate -1-.
