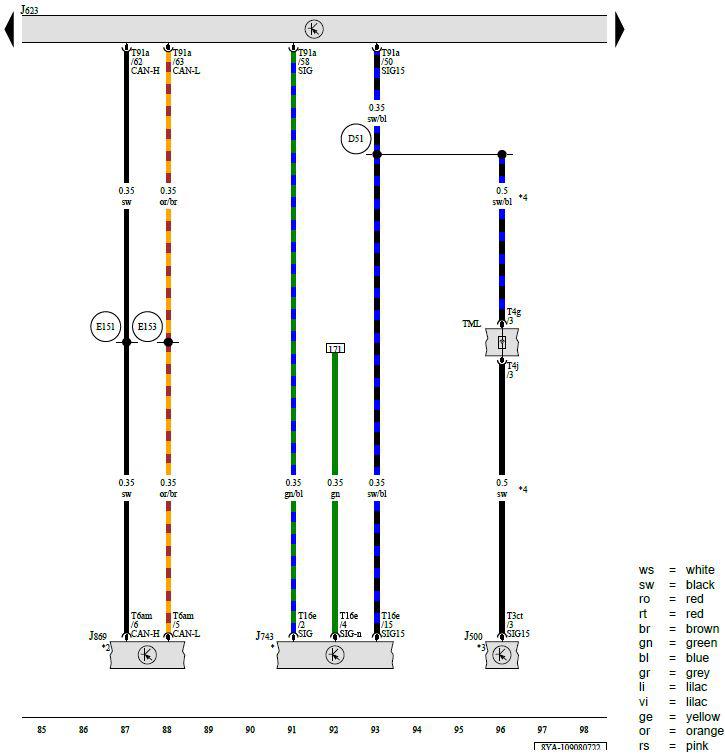

Power Steering Control Module, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC, Structure-Borne Sound Control Module

Courtesy of AUDI OF AMERICA, LLC

J500 -  Power Steering Control Module

J623 -  Engine/Motor Control Module

J743 -  Dual-Clutch Transmission Mechatronic

J869 -  Structure-Borne Sound Control Module

T3ct -  3-Pin Connector, Black

T4g -  4-Pin Connector, Black

T4j -  4-Pin Connector, Black

T6am -  6-Pin Connector, Black

T16e -  16-Pin Connector, Black

T91a -  91-Pin Connector, Black

TML -  Coupling Point in Engine/Motor Compartment, Left

D51 -  Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)

E151 -  Connection 1 (CAN Bus, Engine/Motor Control Module, High)

E153 -  Connection 1 (CAN Bus, Engine/Motor Control Module, Low)

* -  Refer to Applicable Wiring Diagram for Automatic Transmission

*2 -  Refer to Applicable Wiring Diagram

*3 -  Refer to the Applicable Wiring Diagram for Electromechanical Power Steering

*4 -  Through November 2020
