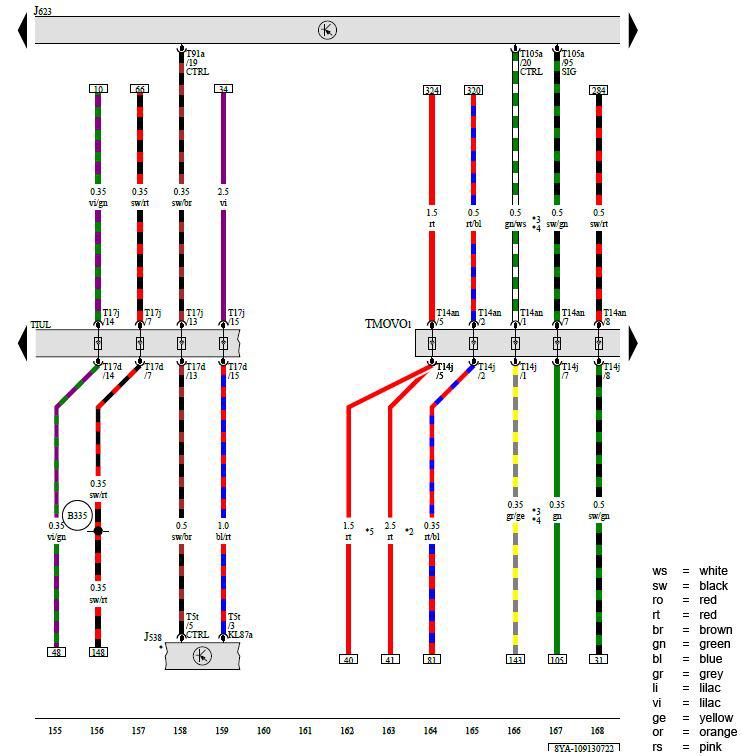

Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J538 -  Fuel Pump Control Module

J623 -  Engine/Motor Control Module

T5t -  5-Pin Connector, Black

T14an -  14-Pin Connector, Gray

T14j -  14-Pin Connector, Gray

T17d -  17-Pin Connector, Red

T17j -  17-Pin Connector, Red

T91a -  91-Pin Connector, Black

T105a -  105-Pin Connector, Black

TIUL -  Coupling Point in Interior, Bottom Left

TMOVO1Engine -  Pre-Wiring Coupling Point 1

B335 -  Connection 54 (in Main Wiring Harness) 1

* -  Refer to Applicable Fuel System Wiring Diagram

*2 -  Through November 2021

*3 -  For LEV3/Tier 3 70 Emissions Standard

*4 -  From June 2021

*5 -  From November 2021
