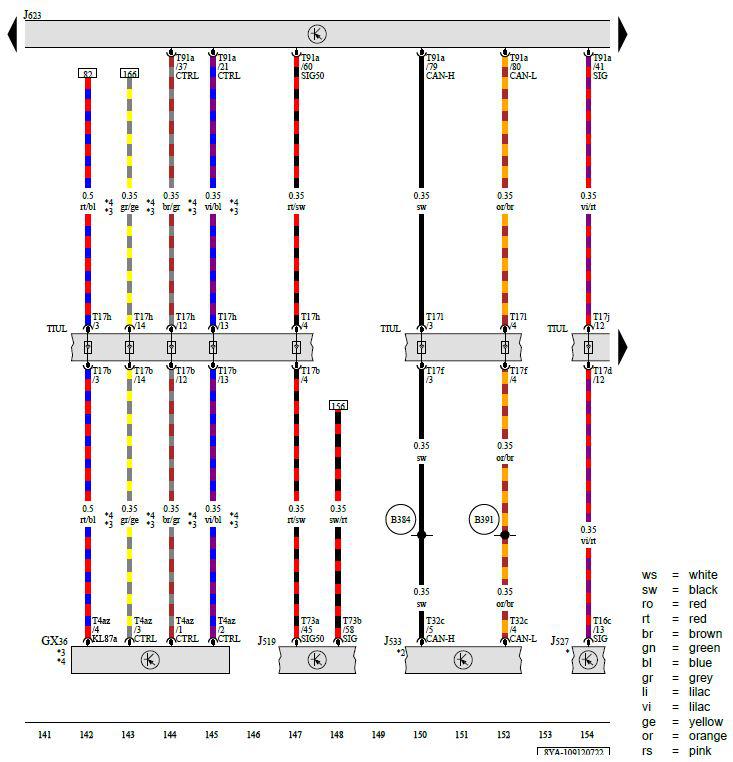

Fuel Tank Leak Detection Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
GX36 - Fuel Tank Leak Detection Module
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
J623 - Engine/Motor Control Module
T4az - 4-Pin Connector, Black
T16c - 16-Pin Connector, Black
T17b - 17-Pin Connector, Black
T17d - 17-Pin Connector, Red
T17f - 17-Pin Connector, Gray
T17h - 17-Pin Connector, Black
T17j - 17-Pin Connector, Red
T17l - 17-Pin Connector, Gray
T32c - 32-Pin Connector, Black
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
T91a - 91-Pin Connector, Black
TIUL - Coupling Point in Interior, Bottom Left
B384 - Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)
B391 - Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Steering Column Electronics Wiring Diagram
*2 - Refer to the Applicable Powertrain CAN Bus Network Data Bus Wiring Diagram
*3 - From June 2021
*4 - For LEV3/Tier 3 70 Emissions Standard
