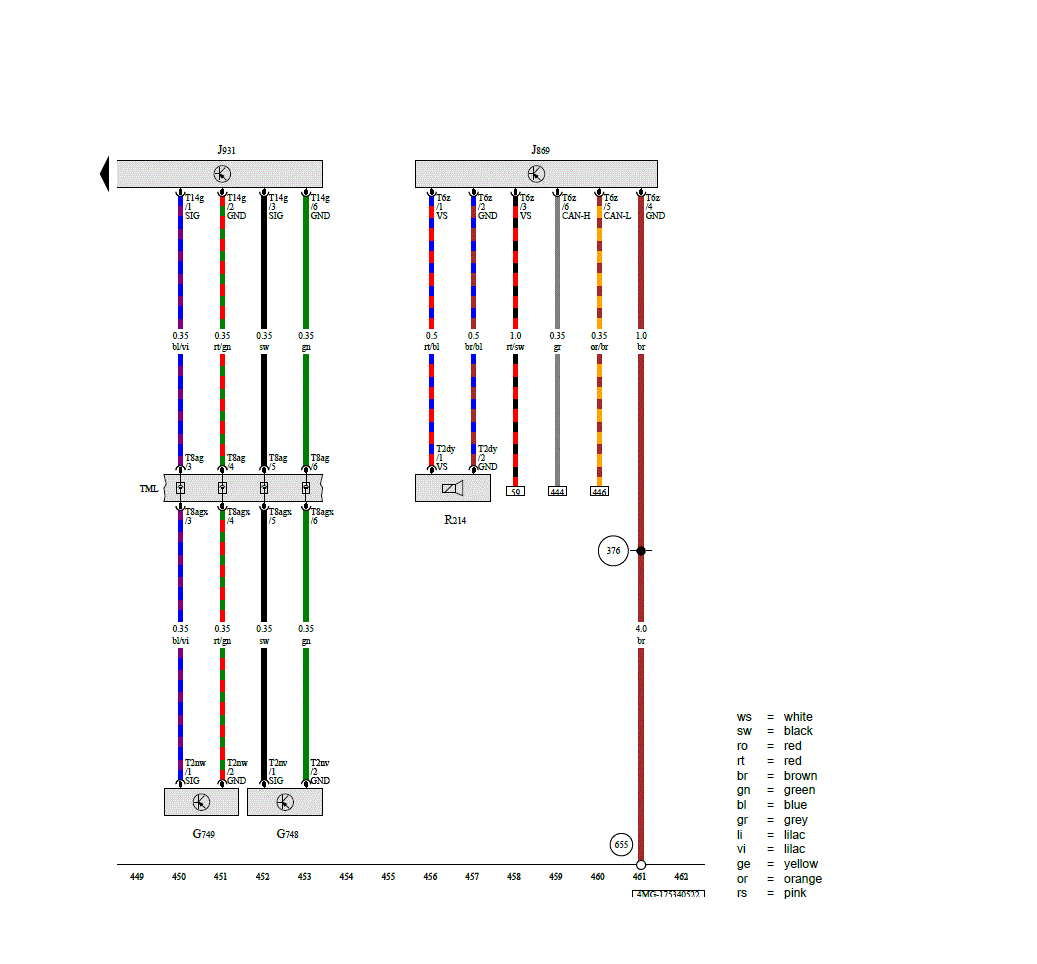

Assembly Mount Sensor 1, Assembly Mount Sensor 2, Structure-Borne Sound Control Module, Assembly Mount Control Module, Structure-Borne Sound Actuator

Courtesy of AUDI OF AMERICA, LLC

G748

Assembly Mount Sensor 1

G749

Assembly Mount Sensor 2

J869

Structure-Borne Sound Control Module Type:BT, Slpdok:, Aim:BTJ869

J931

Assembly Mount Control Module Type:BT, Slpdok:, Aim:BTJ931

R214

Structure-Borne Sound Actuator

T2dy

2-Pin Connector, Black

T2nv

2-Pin Connector, Black

T2nw

2-Pin Connector, Black

T6z

6-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT6z

T8ag

8-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT8ag

T8agx

8-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT8agx

T14g

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14g

TML

Coupling Point in Engine/Motor Compartment, Left Type:BT, Slpdok:, Aim:BTTML

376

Ground Connection 11 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp Type:VB, Slpdok:, Aim:VB655
