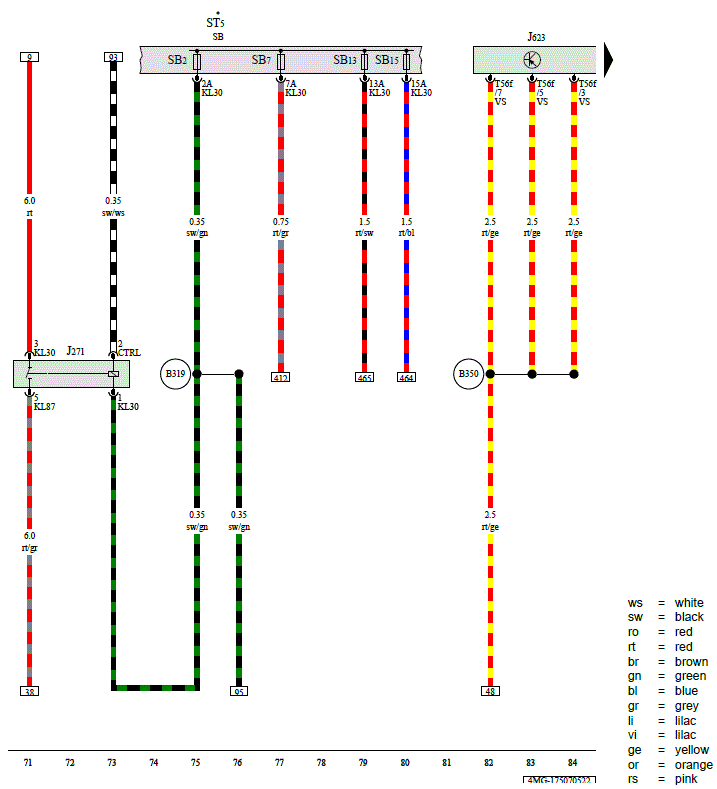

MOTRONIC Engine Control Module Power Supply Relay, Engine/Motor Control Module, Fuse Panel 5

Courtesy of AUDI OF AMERICA, LLC

J271

Motronic Engine Control Module Power Supply Relay Type:BT, Slpdok:, Aim:BTJ271

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB2

Fuse 2 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

ST5

Fuse Panel 5

SB7

Fuse 7 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB13

Fuse 13 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB15

Fuse 15 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T56f

56-Pin Connector, Black, Black Type:BT, Slpdok:, Aim:BTT56f

B319

Positive Connection 5 (30a) (in Main Wiring Harness)

B350

Positive Connection 1 (87a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
