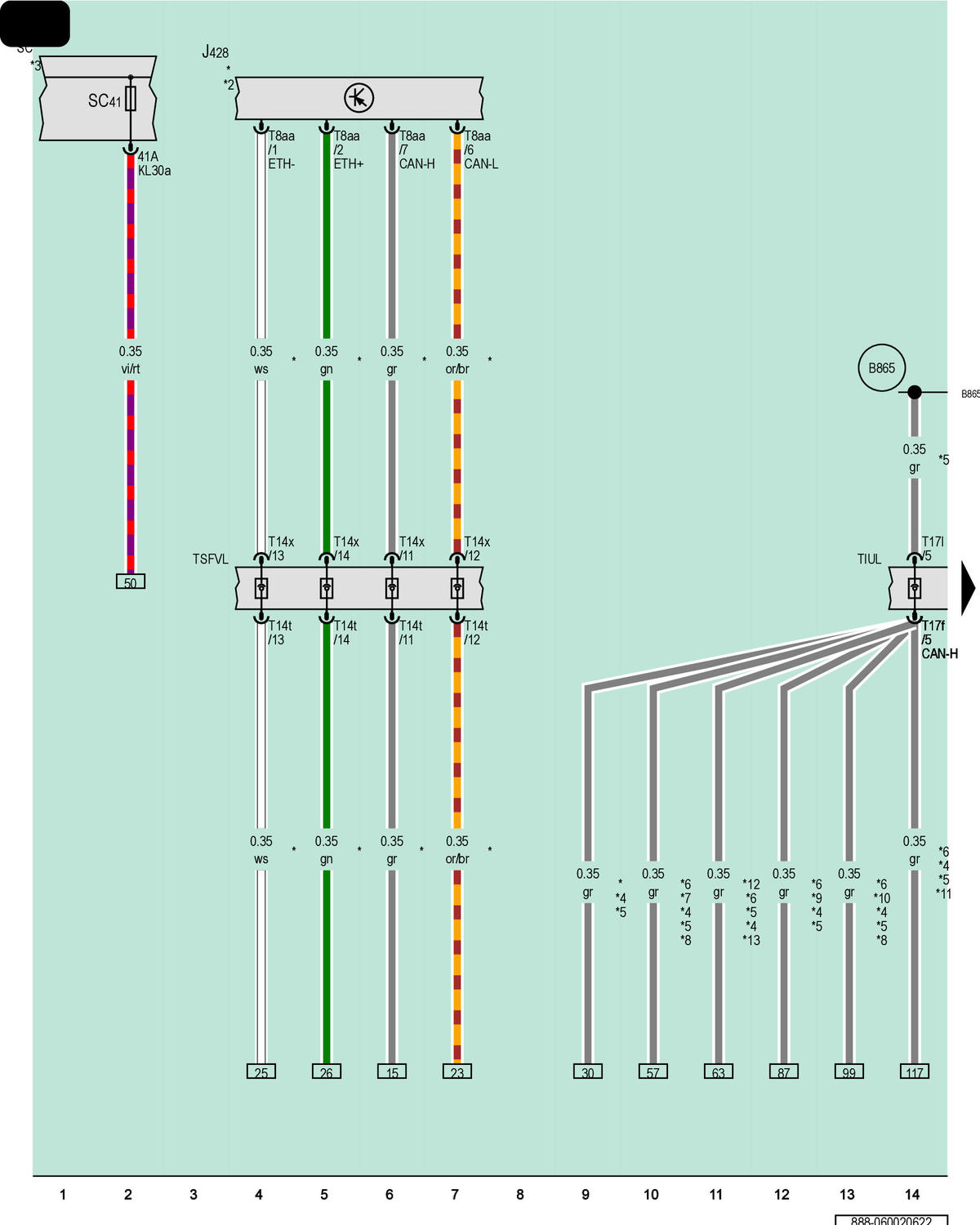

Control Module For Adaptive Cruise Control, Fuse Panel C
J428
Control Module for Adaptive Cruise Control
SC
Fuse Panel C
SC41
Fuse 41 (On Fuse Panel C)
T8aa
8-Pin Connector, Black
T14t
14-Pin Connector, Black
T14x
14-Pin Connector, Black
T17f
17-Pin Connector, Gray
T17l
17-Pin Connector, Gray
TIUL
Coupling Point in Interior, Bottom Left
TSFVL
Coupling Point on Left Front Bumper
B865
Driver Assistance Systems CAN Bus High Connection 1 (in Main Wiring Harness)
*
For Vehicles with Driver Assistance Systems Front Camera
*2
Refer to the Applicable Assistance Systems Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
For Vehicles with Headlamp Range Control Module
*5
For Vehicles with Control Module for Adaptive Cruise Control
*6
For Vehicles Without Driver Assistance Systems Front Camera
*7
For Vehicles without Peripheral Camera
*8
For Vehicles Without Lane Change Assistance Control Module
*9
For Vehicles with Peripheral Camera
*10
For Vehicles with Rearview Camera System
*11
Sportback
*12
Sedan
*13
For Vehicles with Lane Change Assistance Control Module
