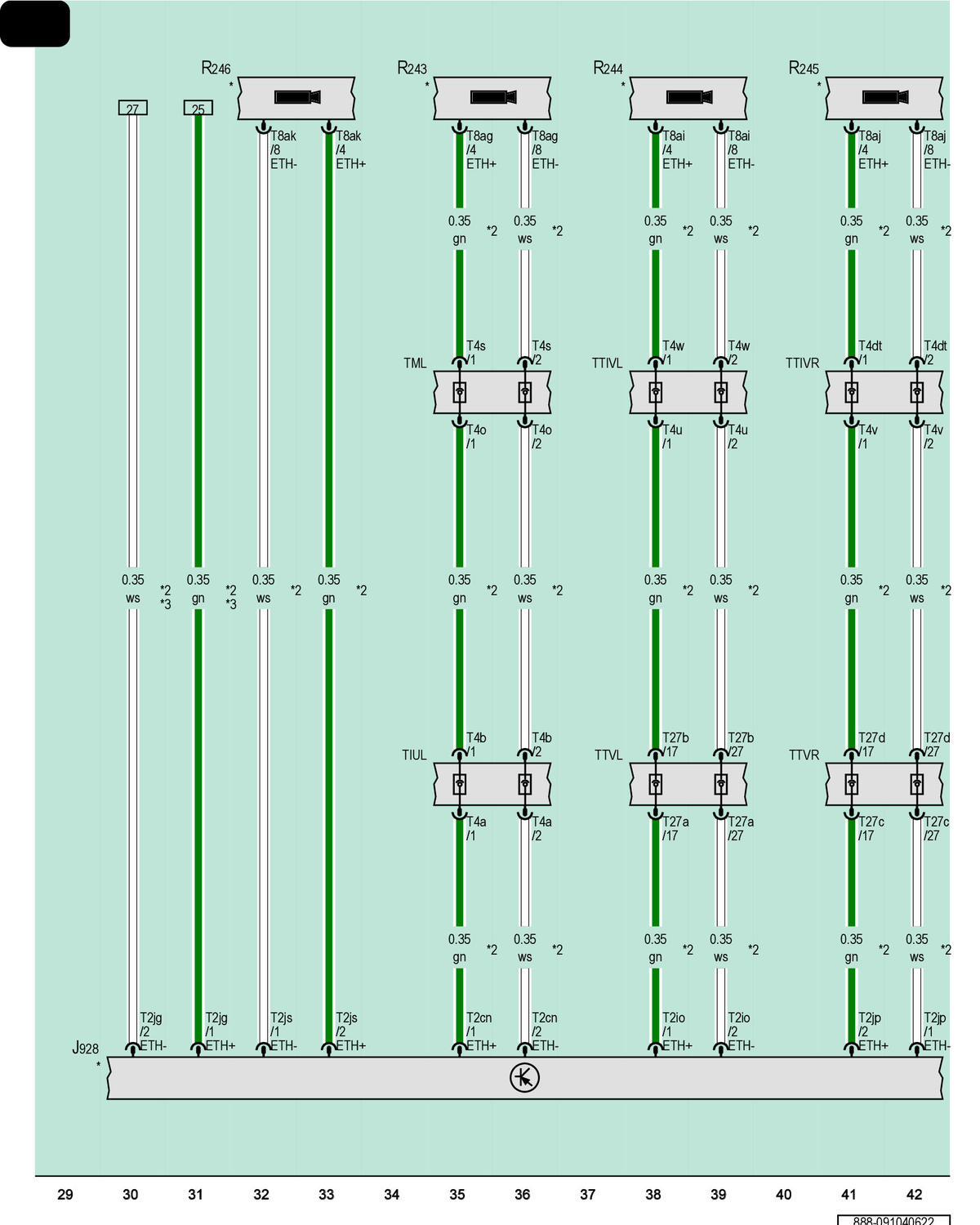

Peripheral Camera Control Module, Front Peripheral Camera, Left Peripheral Camera, Right Peripheral Camera, Rear Peripheral Camera

Courtesy of AUDI OF AMERICA, LLC

J928  Peripheral Camera Control Module

R243  Front Peripheral Camera

R244  Left Peripheral Camera

R245  Right Peripheral Camera

R246  Rear Peripheral Camera

T2cn  2-Pin Connector, White

T2io  2-Pin Connector, White

T2jg  2-Pin Connector, White

T2jp  2-Pin Connector, White

T2js  2-Pin Connector, White

T4a  4-Pin Connector, Brown

T4b  4-Pin Connector, Brown

4-Pin Connector, Brown

T4dt  4-Pin Connector, Black

T4o  4-Pin Connector, Black

T4s  4-Pin Connector, Black

T4u  4-Pin Connector, Black

T4v  4-Pin Connector, Black

T4w  4-Pin Connector, Black

T8ag  8-Pin Connector, Black

T8ai  8-Pin Connector, Black

T8aj  8-Pin Connector, Black

T8ak  8-Pin Connector, Black

T27a  27-Pin Connector, Black

T27b  27-Pin Connector, Black

T27c  27-Pin Connector, Black

T27d  27-Pin Connector, Black

TIUL  Coupling Point in Interior, Bottom Left

TML  Coupling Point in Engine/Motor Compartment, Left

TTIVL  Coupling Point in Left Front Door

TTIVR  Coupling Point in Right Front Door

TTVL  Left Front Door Coupling Point

TTVR  Right Front Door Coupling Point

*  Refer to Applicable Peripheral Camera Wiring Diagram

*2  For Vehicles with Peripheral Camera

*3  Ethernet Data Wire
