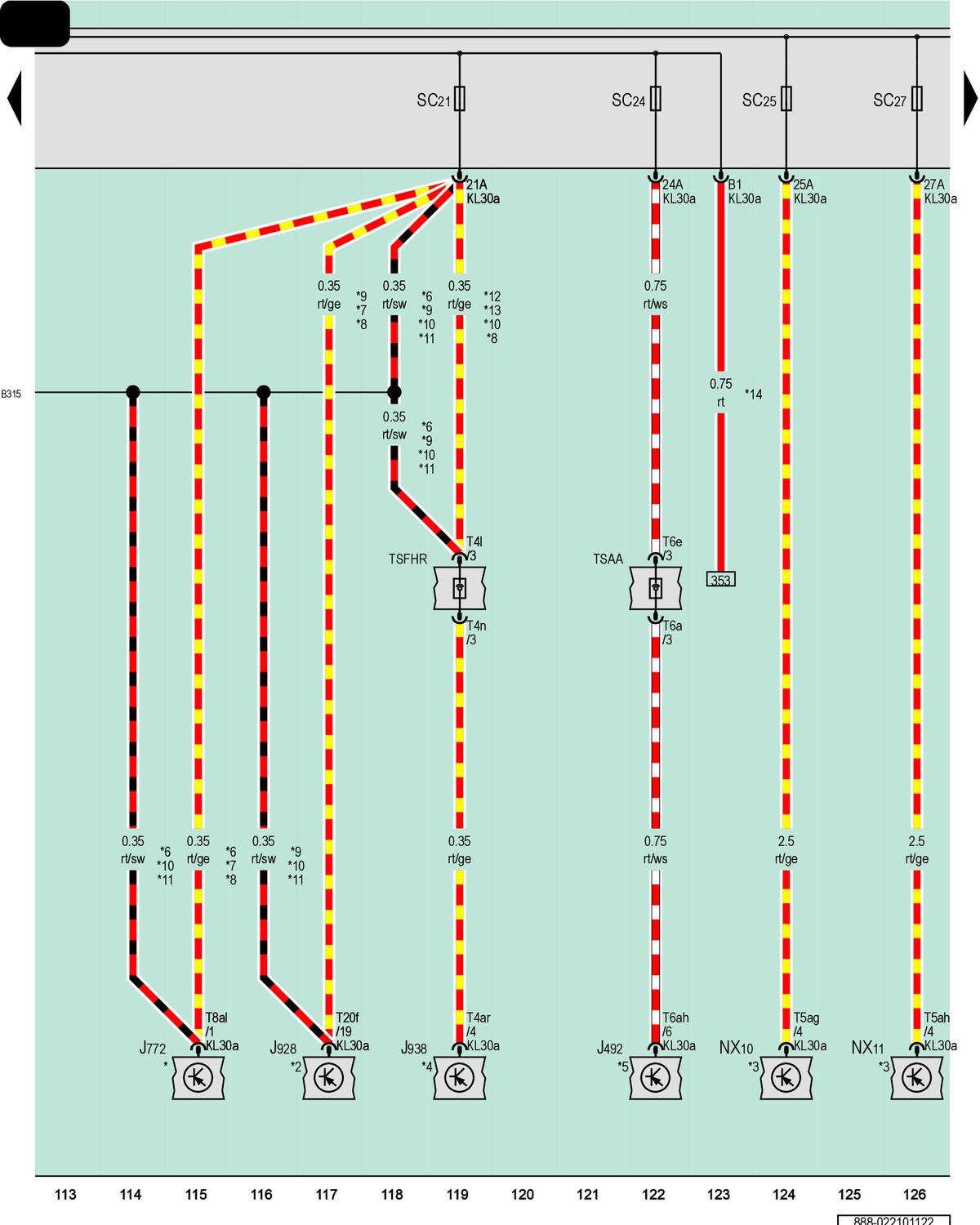

All-Wheel Drive Control Module, Rearview Camera System Control Module, Peripheral Camera Control Module, Power Rear Lid Opening Control Module, Left Front Seat Belt, Right Front Seat Belt, Fuse Panel C
J492
All-Wheel Drive Control Module
J772
Rearview Camera System Control Module
J928
Peripheral Camera Control Module
J938
Power Rear Lid Opening Control Module
NX10
Left Front Seat Belt
NX11
Right Front Seat Belt
SC
Fuse Panel C
SC21
Fuse 21 (On Fuse Panel C)
SC24
Fuse 24 (On Fuse Panel C)
SC25
Fuse 25 (On Fuse Panel C)
SC27
Fuse 27 (On Fuse Panel C)
T4ar
4-Pin Connector, Black
T4l
4-Pin Connector, Black
T4n
4-Pin Connector, Black
T5ag
5-Pin Connector, Naturally Cloudy
T5ah
5-Pin Connector, Naturally Cloudy
T6a
6-Pin Connector, Black
T6ah
6-Pin Connector, Black
T6e
6-Pin Connector, Black
T8al
8-Pin Connector, Black
T20f
20-Pin Connector, Black
TSAA
All-Wheel Drive Coupling Point
TSFHR
Coupling Point on Right Rear Bumper
B315
Positive Connection 1 (30a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*2
Refer to Applicable Peripheral Camera Wiring Diagram
*3
Refer to Applicable Airbag Wiring Diagram
*4
Refer to Applicable Power Rear Lid Wiring Diagram
*5
Refer to Applicable AWD Wiring Diagram
*6
For Vehicles with Rearview Camera System
*7
For Vehicles Without Sensor-Controlled Power Rear Lid Opening
*8
Through April 2020
*9
For Vehicles with Peripheral Camera
*10
For Vehicles with Sensor-Controlled Power Rear Lid Opening
*11
Different Wire Color Possible
*12
For Vehicles Without Rearview Camera System
*13
For Vehicles without Peripheral Camera
*14
Special Equipment
