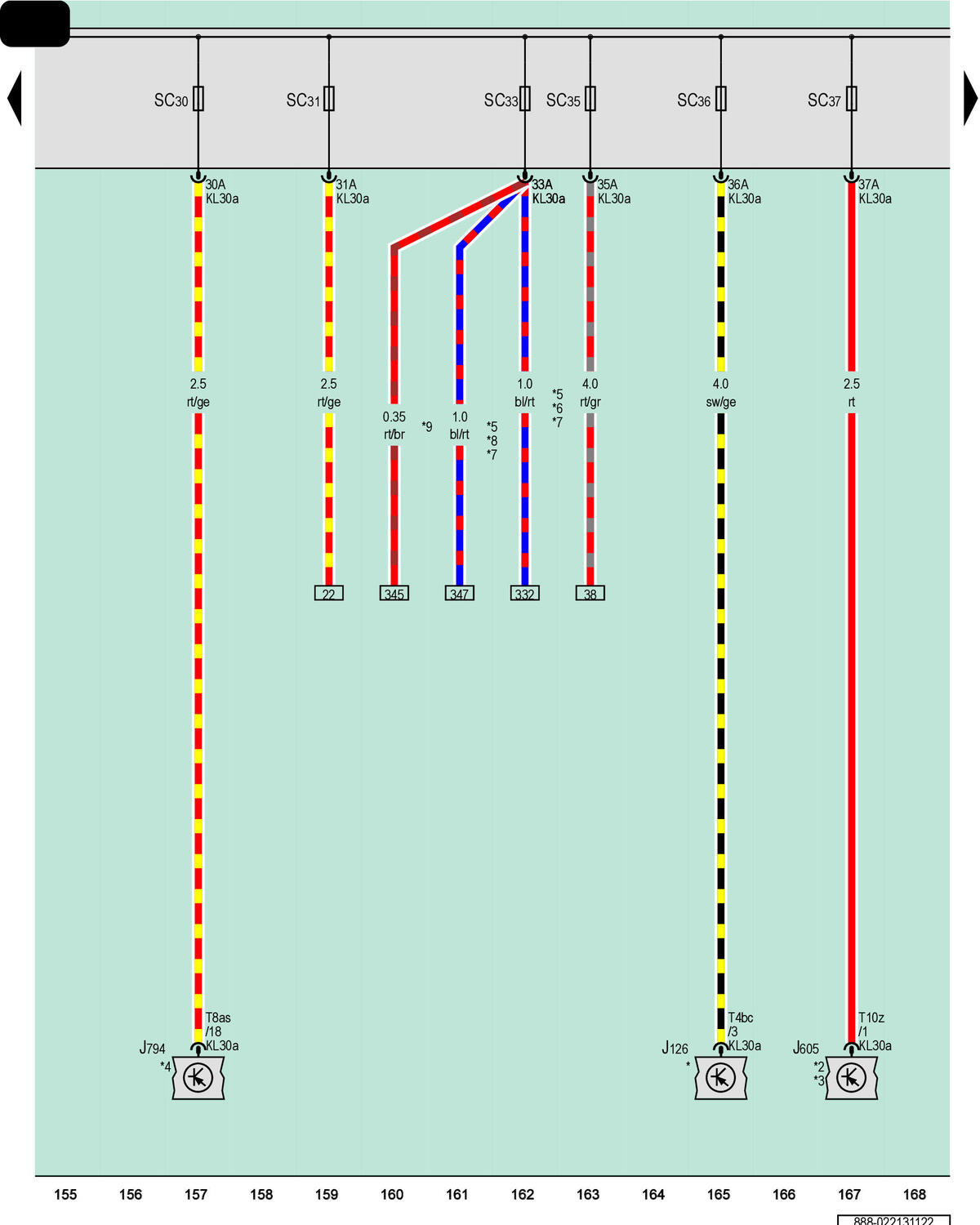

Fresh Air Blower Control Module, Rear Lid Control Module, Information Electronics Control Module 1, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J126

Fresh Air Blower Control Module

J605

Rear Lid Control Module

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SC30

Fuse 30 (On Fuse Panel C)

SC31

Fuse 31 (On Fuse Panel C)

SC33

Fuse 33 (On Fuse Panel C)

SC35

Fuse 35 (On Fuse Panel C)

SC36

Fuse 36 (On Fuse Panel C)

SC37

Fuse 37 (On Fuse Panel C)

T4bc

4-Pin Connector, Black

T8as

8-Pin Connector, Black

T10z

10-Pin Connector, Black

*

Refer to Applicable A/C System Wiring Diagram

*2

Refer to Applicable Power Rear Lid Wiring Diagram

*3

Sportback

*4

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*5

Running Change

*6

For LHD Vehicles

*7

Through June 2021

*8

For RHD Vehicles

*9

From June 2021
