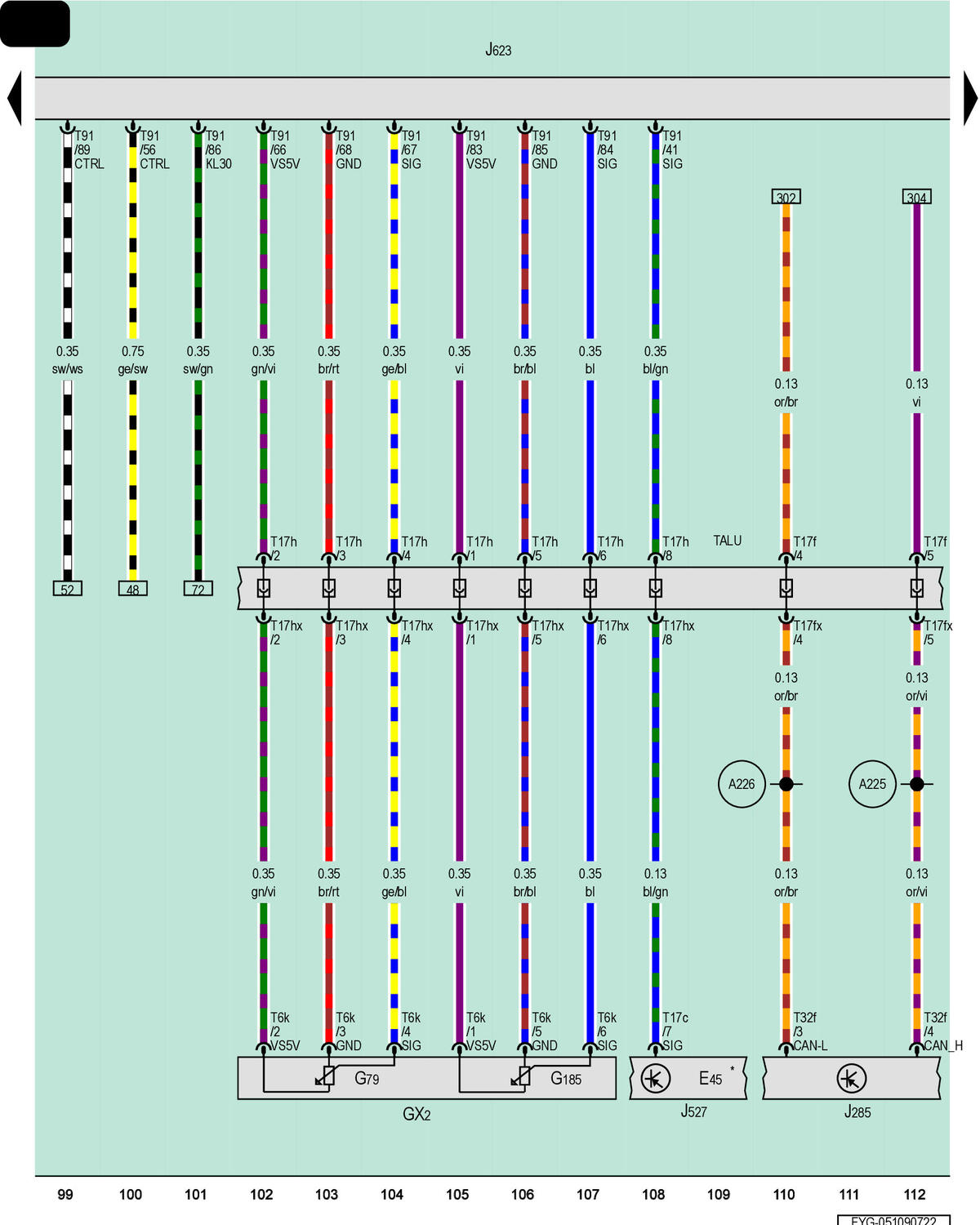

Accelerator Pedal Module, Instrument Cluster Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module
E45
Cruise Control Switch
GX2
Accelerator Pedal Module
G79
Accelerator Pedal Position Sensor
G185
Accelerator Pedal Position Sensor 2
J285
Instrument Cluster Control Module
J527
Steering Column Electronics Control Module
J623
Engine/Motor Control Module
T6k
6-Pin Connector, Black
T17c
17-Pin Connector, Yellow
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T17h
17-Pin Connector, White
T17hx
17-Pin Connector, White
T32f
32-Pin Connector, Gray
T91
91-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
*
For Vehicles with Cruise Control System
