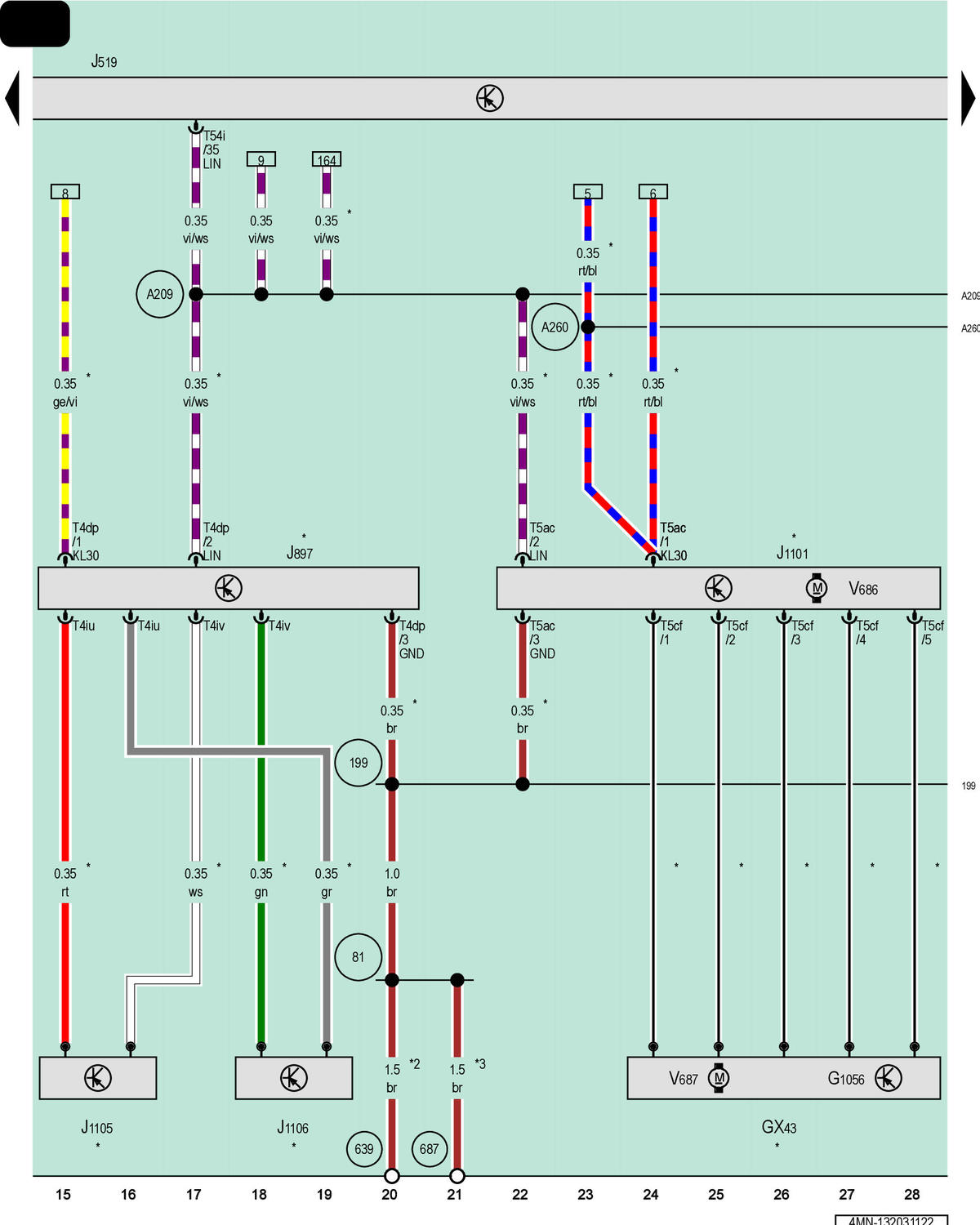

Fragrance Diffuser System Functional Unit, Vehicle Electrical System Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module
GX43
Fragrance Diffuser System Functional Unit
G1056
Fragrance Diffuser System Temperature Sensor
J519
Vehicle Electrical System Control Module
J897
Ionizer Control Module
J1101
Fragrance Diffuser System Control Module
J1105
Driver Side Ionizer
J1106
Front Passenger Side Ionizer
T4dp
4-Pin Connector, Black
T4iu
4-Pin Connector, Red
T4iv
4-Pin Connector, Brown
T5ac
5-Pin Connector, Black
T5cf
5-Pin Connector, Brown
T54i
54-Pin Connector, Black
V686
Fragrance Diffuser System Blower
V687
Fragrance Diffuser System Actuator
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
639
Ground Connection on Left A-Pillar
687
Ground Connection 1 on Center Tunnel
A209
LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
A260
Connection 4 (in Instrument Panel Wiring Harness)
*
Depending on Equipment
*2
For LHD Vehicles
*3
For RHD Vehicles
