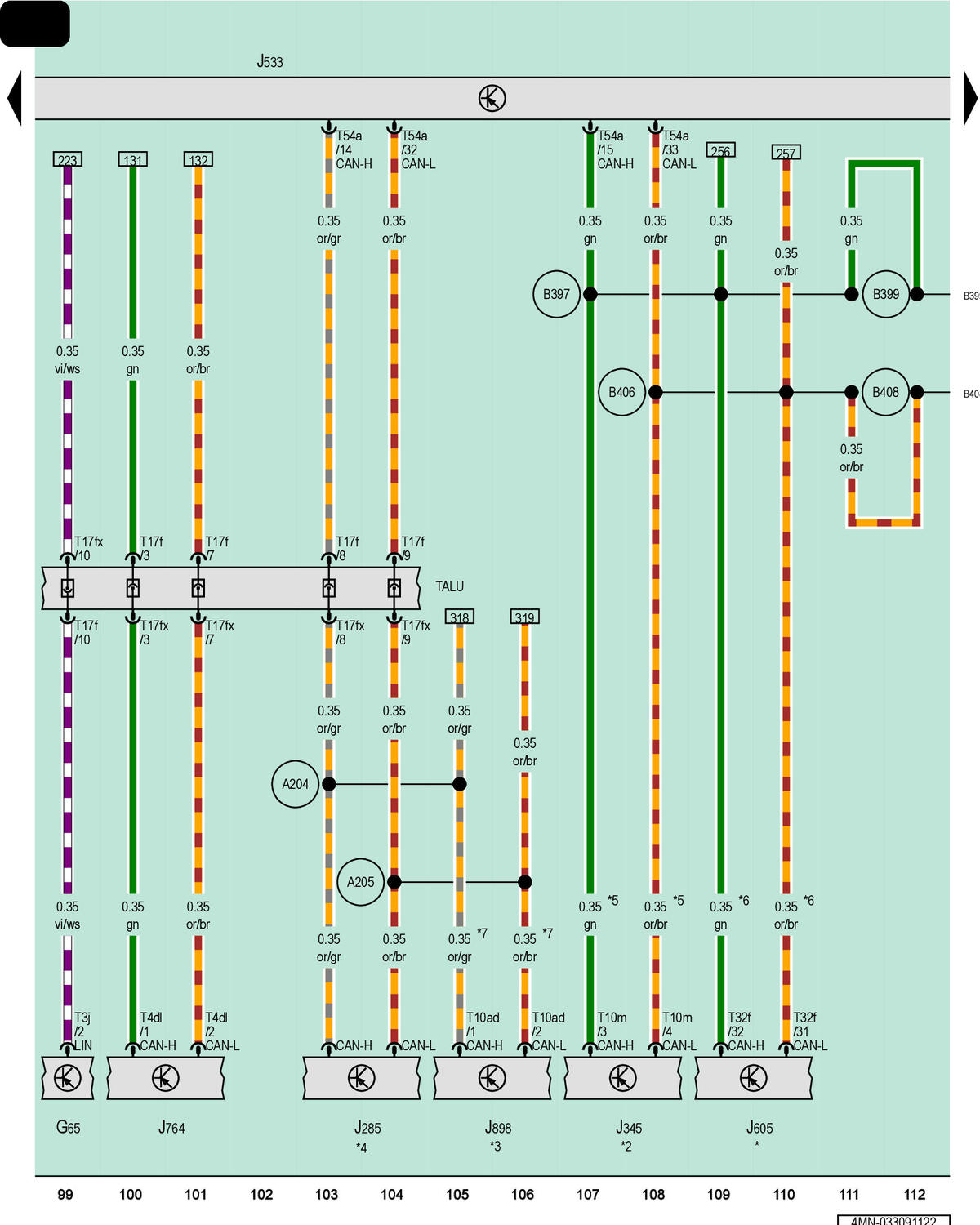

High Pressure Sensor, Instrument Cluster Control Module, Towing Recognition Control Module, Data Bus On Board Diagnostic Interface, Rear Lid Control Module, Electronic Steering Column Lock Control Module, Windshield Projection Head Up Display Control Module
G65
High Pressure Sensor
J285
Instrument Cluster Control Module
J345
Towing Recognition Control Module
J533
Data Bus on Board Diagnostic Interface
J605
Rear Lid Control Module
J764
Electronic Steering Column Lock Control Module
J898
Windshield Projection Head Up Display Control Module
T3j
3-Pin Connector, Black
T4dl
4-Pin Connector, Black
T10ad
10-Pin Connector, Black
T10m
10-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T32f
32-Pin Connector, Naturally Cloudy
T54a
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Refer to Applicable Power Rear Lid Wiring Diagram
*2
Refer to the Wiring Diagram for Trailer Towing
*3
Refer to Applicable Windshield Projection Wiring Diagram
*4
Refer to Applicable Wiring Diagram for Instrument Cluster
*5
For Vehicles with Trailer Hitch
*6
For Vehicles with Power Rear Lid Opening
*7
For Vehicles with Windshield Projection
