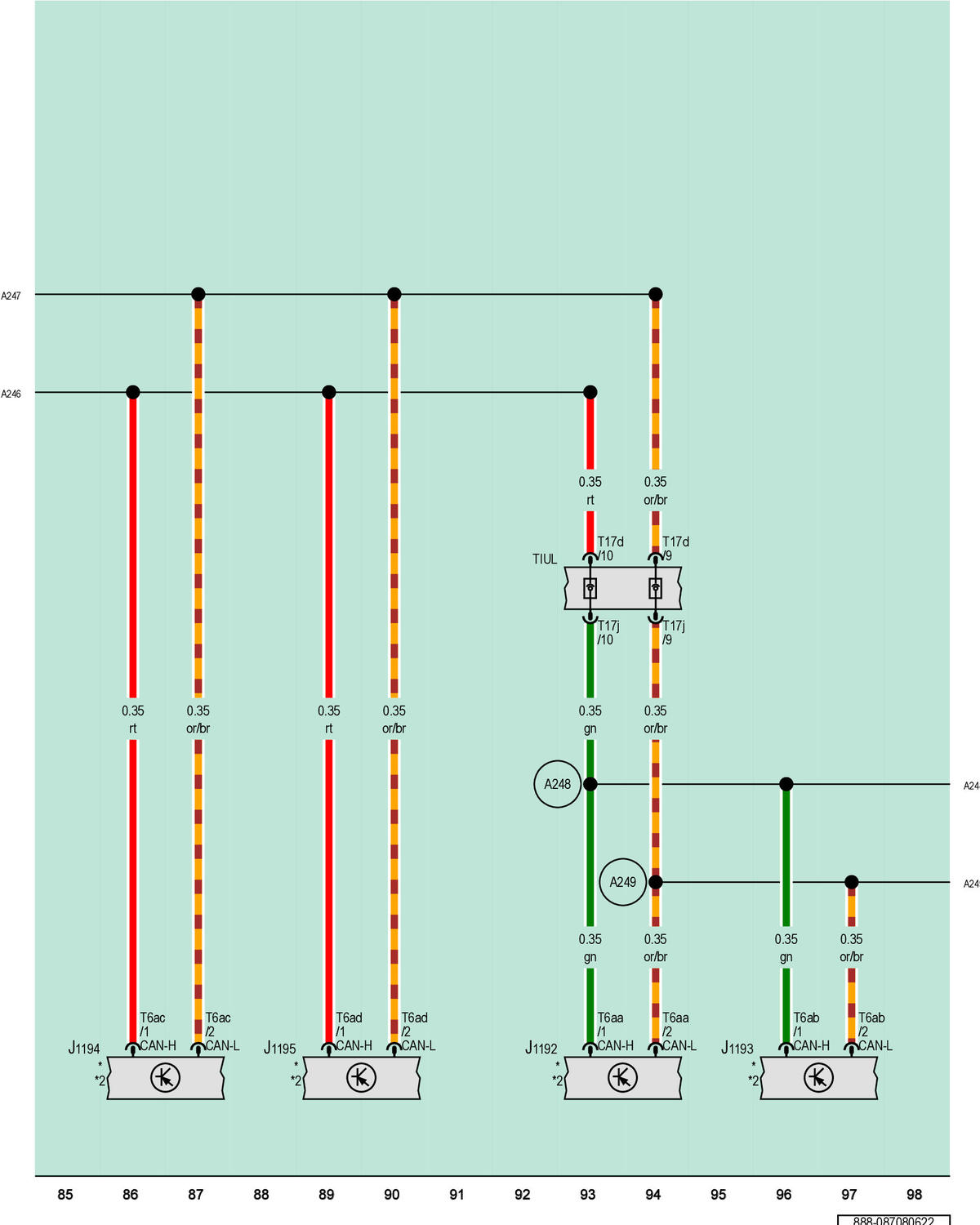

Burglary Protection Control Module 2, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Burglary Protection Control Module 5

Courtesy of AUDI OF AMERICA, LLC

J1192

Burglary Protection Control Module 2

J1193

Burglary Protection Control Module 3

J1194

Burglary Protection Control Module 4

J1195

Burglary Protection Control Module 5

T6aa

6-Pin Connector, Black

T6ab

6-Pin Connector, Black

T6ac

6-Pin Connector, Black

T6ad

6-Pin Connector, Black

T17d

17-Pin Connector, Red

T17j

17-Pin Connector, Red

TIUL

Coupling Point in Interior, Bottom Left

A246

CAN Bus High Connection 1 (in Engine/Motor Compartment Wiring Harness)

A247

CAN Bus Low Connection 1 (in Engine/Motor Compartment Wiring Harness)

A248

CAN Bus High Connection 2 (in Engine/Motor Compartment Wiring Harness)

A249

CAN Bus Low Connection 2 (in Engine/Motor Compartment Wiring Harness)

*1

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

For Vehicles with Keyless Access Authorization
