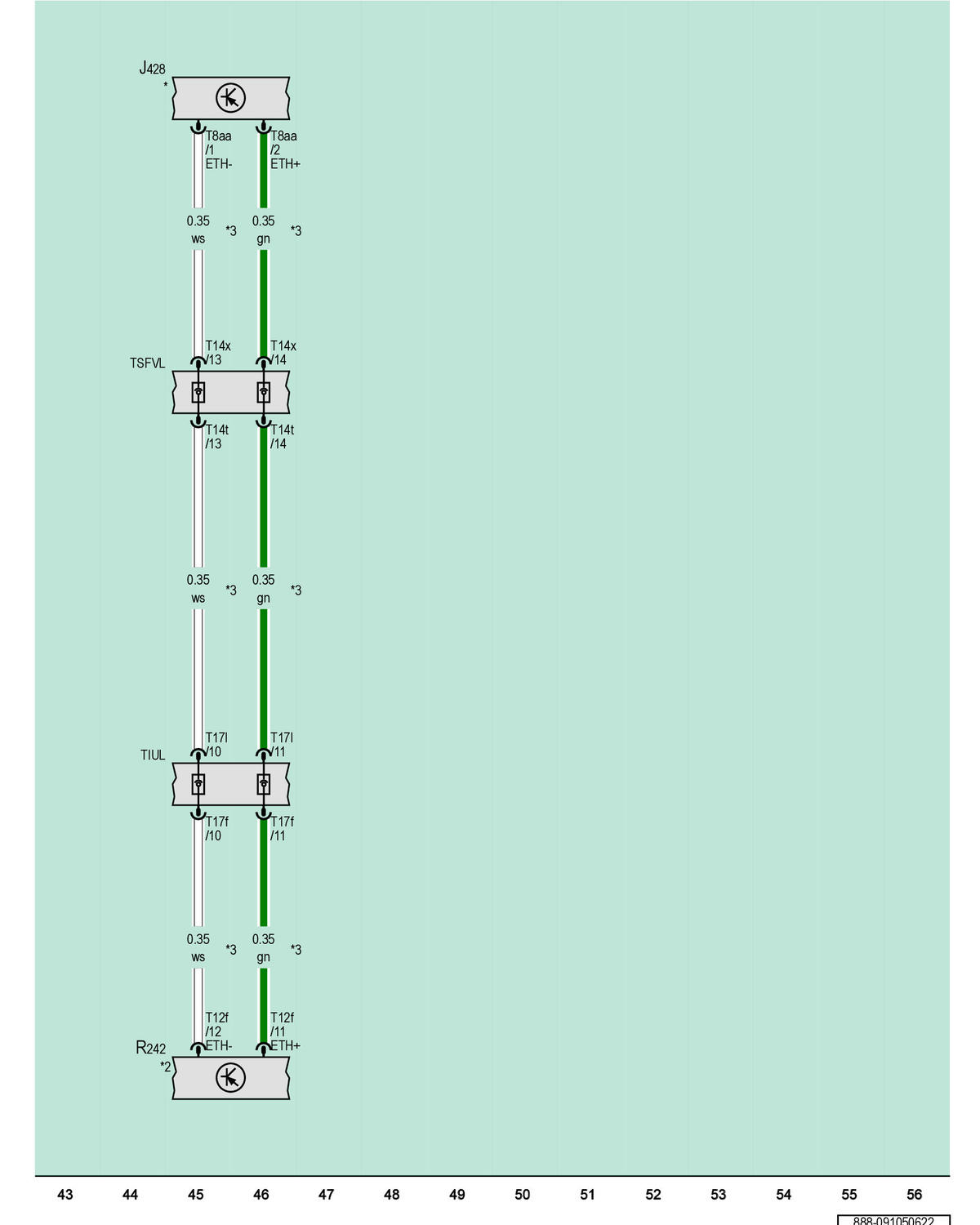

Control Module For Adaptive Cruise Control, Driver Assistance Systems Front Camera
J428 Control Module for Adaptive Cruise Control
R242 Driver Assistance Systems Front Camera
T8aa 8-Pin Connector, Black
T12f 12-Pin Connector, Brown
T14t 14-Pin Connector, Black
T14x 14-Pin Connector, Black
T17f 17-Pin Connector, Gray
T17l 17-Pin Connector, Gray
TIUL Coupling Point in Interior, Bottom Left
TSFVL Coupling Point on Left Front Bumper
* Refer to the Applicable Assistance Systems Wiring Diagram
*2 Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
*3 For Vehicles with Driver Assistance Systems Front Camera
