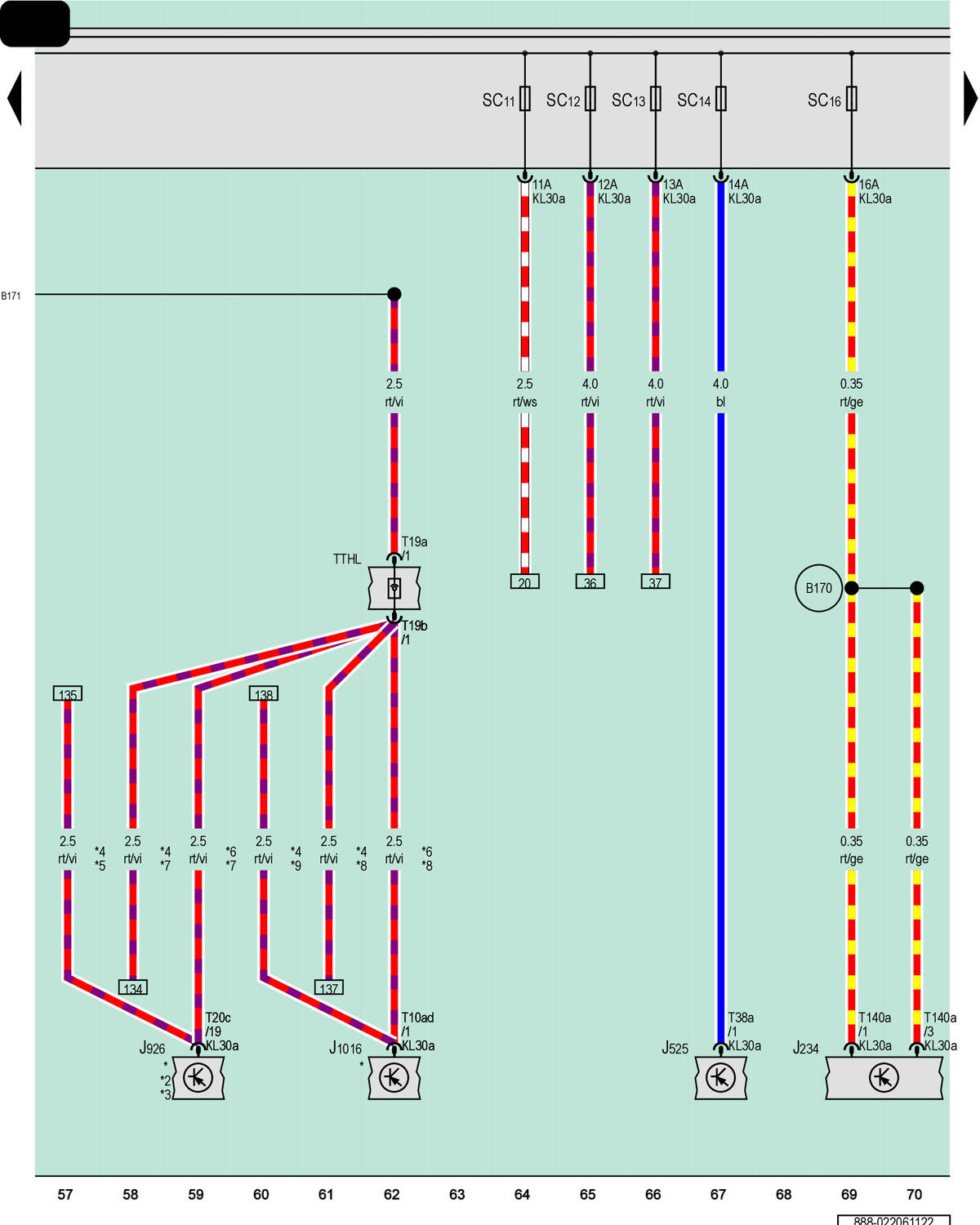

Airbag Control Module, Digital Sound System Control Module, Driver Side Rear Door Control Module, Driver Side Rear Window Regulator Motor Control Module, Fuse Panel C
J234
Airbag Control Module
J525
Digital Sound System Control Module
J926
Driver Side Rear Door Control Module
J1016
Driver Side Rear Window Regulator Motor Control Module
SC
Fuse Panel C
SC11
Fuse 11 (On Fuse Panel C)
SC12
Fuse 12 (On Fuse Panel C)
SC13
Fuse 13 (On Fuse Panel C)
SC14
Fuse 14 (On Fuse Panel C)
SC16
Fuse 16 (On Fuse Panel C)
T10ad
10-Pin Connector, Black
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T20c
20-Pin Connector, White
T38a
38-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TTHL
Left Rear Door Coupling Point
B170
Positive Connection 2 (30) (in Interior Wiring Harness)
B171
Positive Connection 3 (30) (in Interior Wiring Harness)
*
Refer to Applicable Convenience System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Interior Lamps
*3
Refer to Applicable Sound System Wiring Diagram
*4
For RHD Vehicles
*5
For Vehicles with Right Rear Door Control Module
*6
For LHD Vehicles
*7
For Vehicles with Left Rear Door Control Module
*8
For Vehicles Without Left Rear Door Control Module
*9
For Vehicles Without Right Rear Door Control Module
