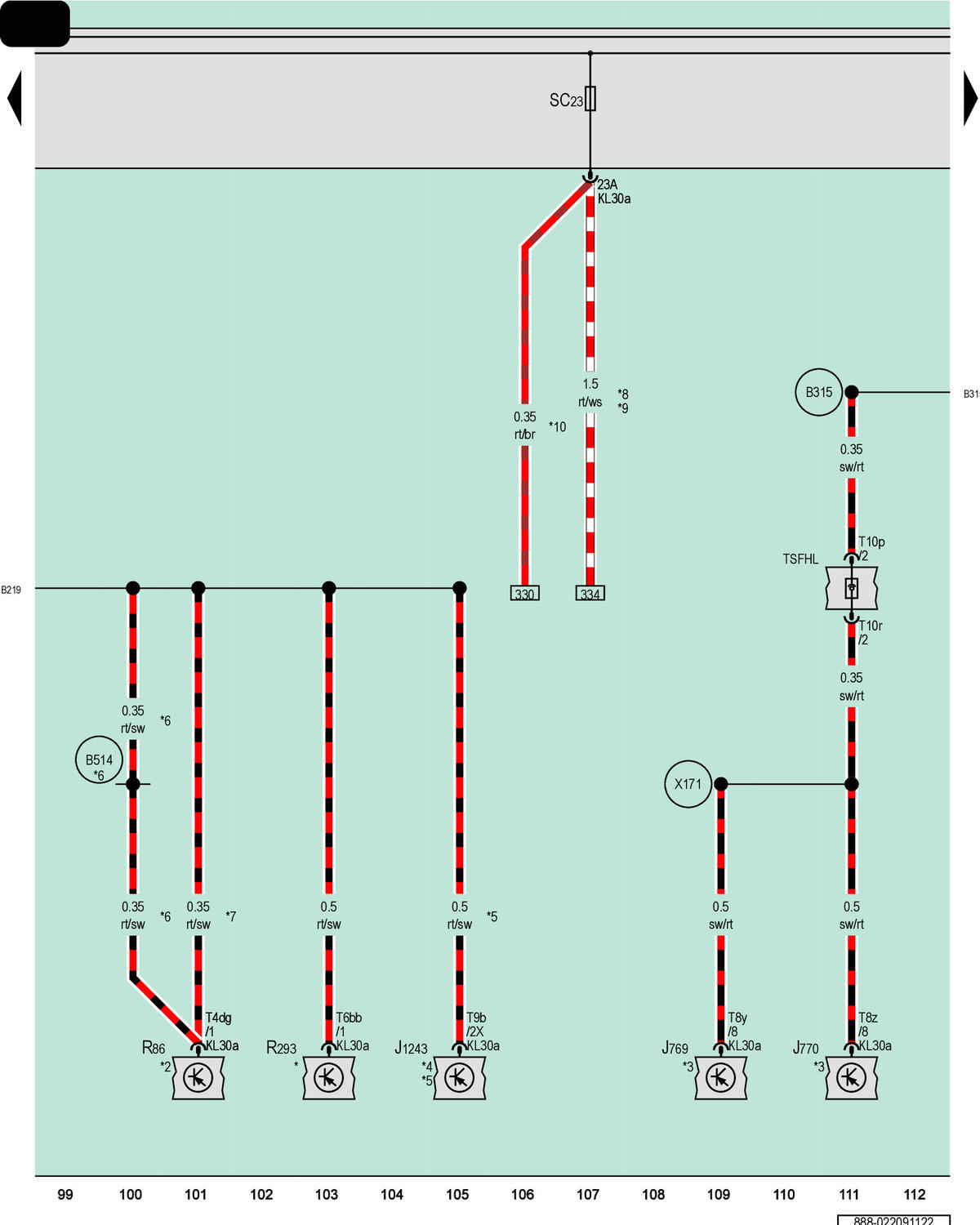

Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Android Operating System Control Module, Cellular Telephone Amplifier, USB Distributor, Fuse Panel C
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
J1243
Android Operating System Control Module
R86
Cellular Telephone Amplifier
R293
USB Distributor
SC
Fuse Panel C
SC23
Fuse 23 (On Fuse Panel C)
T4dg
4-Pin Connector, Black
T6bb
6-Pin Connector, Black
T8y
8-Pin Connector, Black
T8z
8-Pin Connector, Black
T9b
9-Pin Connector, Blue
T10p
10-Pin Connector, Black
T10r
10-Pin Connector, Black
TSFHL
Coupling Point on Left Rear Bumper
B219
Positive Connection 4 (30a) (in Interior Wiring Harness)
B315
Positive Connection 1 (30a) (in Main Wiring Harness)
B514
Positive Connection 10 (30a) (in Interior Wiring Harness)
X171
Connection 15 (in Rear Bumper Wiring Harness)
*
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*2
Refer to the Applicable Cell Phone System Wiring Diagram
*3
Refer to Applicable Lane Change Assistance Wiring Diagram
*4
Refer to Applicable Wiring Diagram
*5
For Vehicles with China Equipment
*6
For Vehicles with Top Sport Equipment
*7
For Vehicles Without Top Sport Equipment
*8
Running Change
*9
Through June 2021
*10
From June 2021
