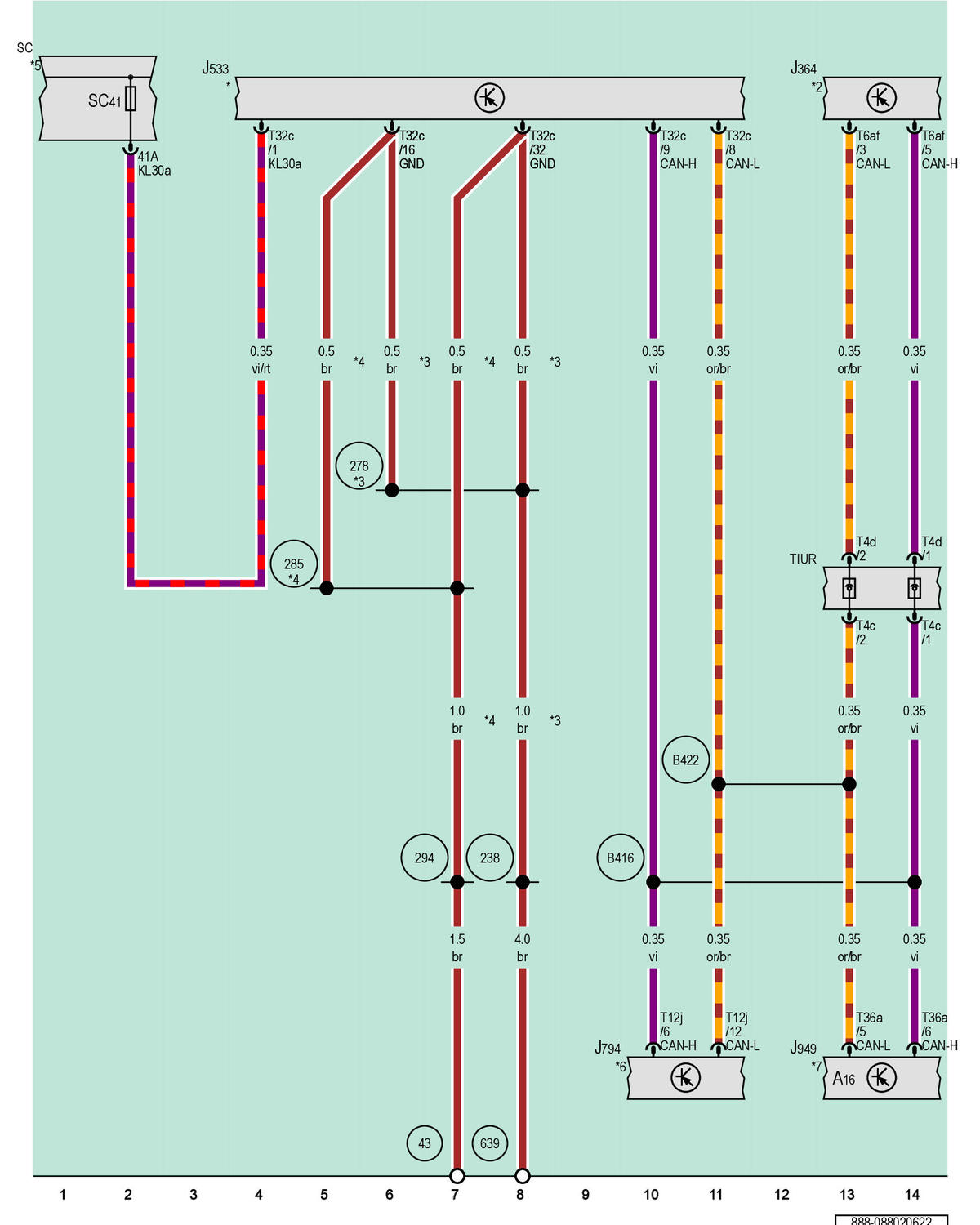

Auxiliary Heater Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Fuse Panel C
A16 Telematics Emergency Battery
J364 Auxiliary Heater Control Module
J533 Data Bus on Board Diagnostic Interface
J794 Information Electronics Control Module 1
J949 Control Module for Emergency Call Module and Communication Unit
SC Fuse Panel C
SC41 Fuse 41 (On Fuse Panel C)
T4c 4-Pin Connector, Black
T4d 4-Pin Connector, Black
T6af 6-Pin Connector, Black
T12j 12-Pin Connector, Gray
T32c 32-Pin Connector, Black
T36a 36-Pin Connector, Black
TIUR Coupling Point in Interior, Bottom Right
43 Ground Connection on A-Pillar, Lower Right
238 Ground Connection 1 (in Interior Wiring Harness)
278 Ground Connection 4 (in Interior Wiring Harness)
285 Ground Connection 7 (in Interior Wiring Harness)
294 Ground Connection 9 (in Interior Wiring Harness)
639 Ground Connection on Left A-Pillar
B416 Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)
B422 Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)
* Refer to Applicable Wiring Diagram for Data Bus Networking
*2 Refer to the Applicable Parking Heater Wiring Diagram
*3 For LHD Vehicles
*4 For RHD Vehicles
*5 Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*6 Refer to Applicable MMI (Information Electronics) Wiring Diagram
*7 Refer to Applicable Communication Wiring Diagram
