Component Location Overview - Inner Control Modules, LHD

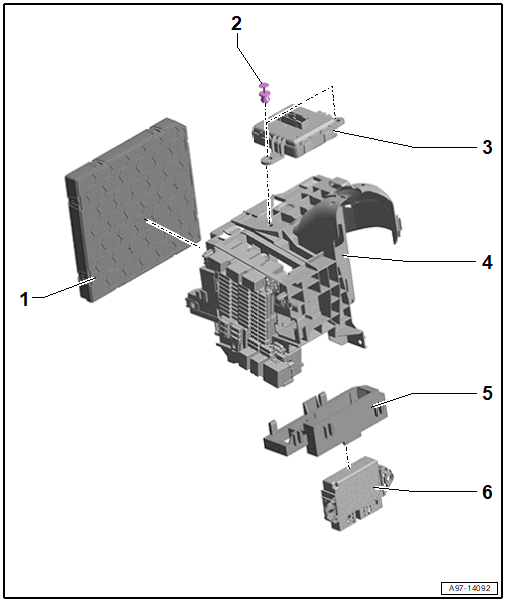

Fig 1: Exploded View Of Inner Control Modules, LHD

Courtesy of AUDI OF AMERICA, LLC

1. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
2. Expanding Rivet
3. Access/Start Authorization Control Module -J518-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - ACCESS/START AUTHORIZATION SYSTEM .
4. Bracket
   • For vehicle electrical system control module
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANEL, INSTRUMENT PANEL/A-PILLAR FUSE PANEL, LHD .
5. Bracket
   • For the control module
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOX .
6. Control Module
   • Equipment version with parking aid: Parking Aid Control Module -J446-
   • Equipment version with parallel parking assist: Parallel Parking Assistance Control Module -J791-
   • Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
