Component Location Overview - Inner Control Modules, RHD

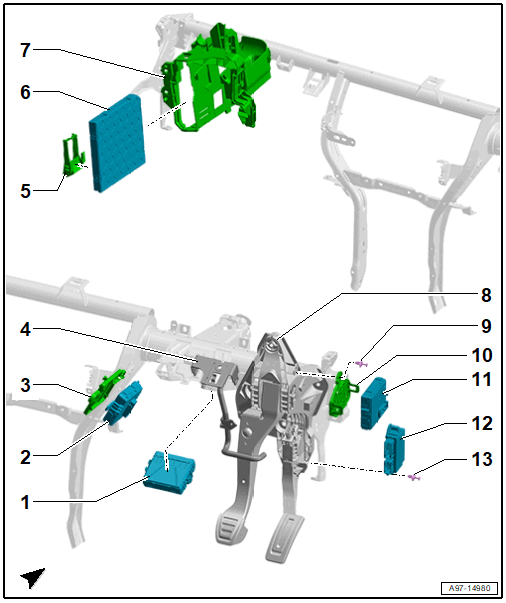

Fig 1: Exploded View Of Inner Control Modules, RHD

Courtesy of AUDI OF AMERICA, LLC

1. Data Bus on Board Diagnostic Interface -J533-
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
2. Access/Start Authorization Control Module -J518-
   • Removing and Installing. Refer to the appropriate Service Information. .
3. Bracket
   • For access/start authorization control module
4. Crash Bolster
5. Guide
   • For the center connector
6. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to the appropriate Service Information. .
7. Bracket
   • For vehicle electrical system control module
8. Pedal Assembly/Mounting Bracket
9. Expanding Rivet
   • Quantity: 2
10. Bracket
    • For the cornering lamp and headlamp range control module
11. Cornering Lamp and Headlamp Range Control Module -J745-
    • Removing and Installing. Refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING .
12. Parking Aid Control Module -J446-
    • Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
13. Expanding Rivet
    • Quantity: 2
