Component Location Overview - Outer Control Modules

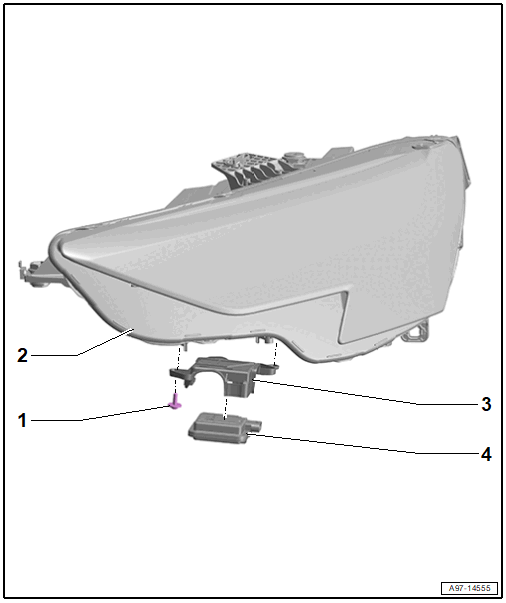

Fig 1: Exploded View Of Outer Control Modules

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Quantity: 2
   • 3 Nm
2. Left Headlamp
3. Bracket
   • For the Garage Door Opener Control Module -J530-
4. Garage Door Opener Control Module -J530-
   • Removing and Installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
