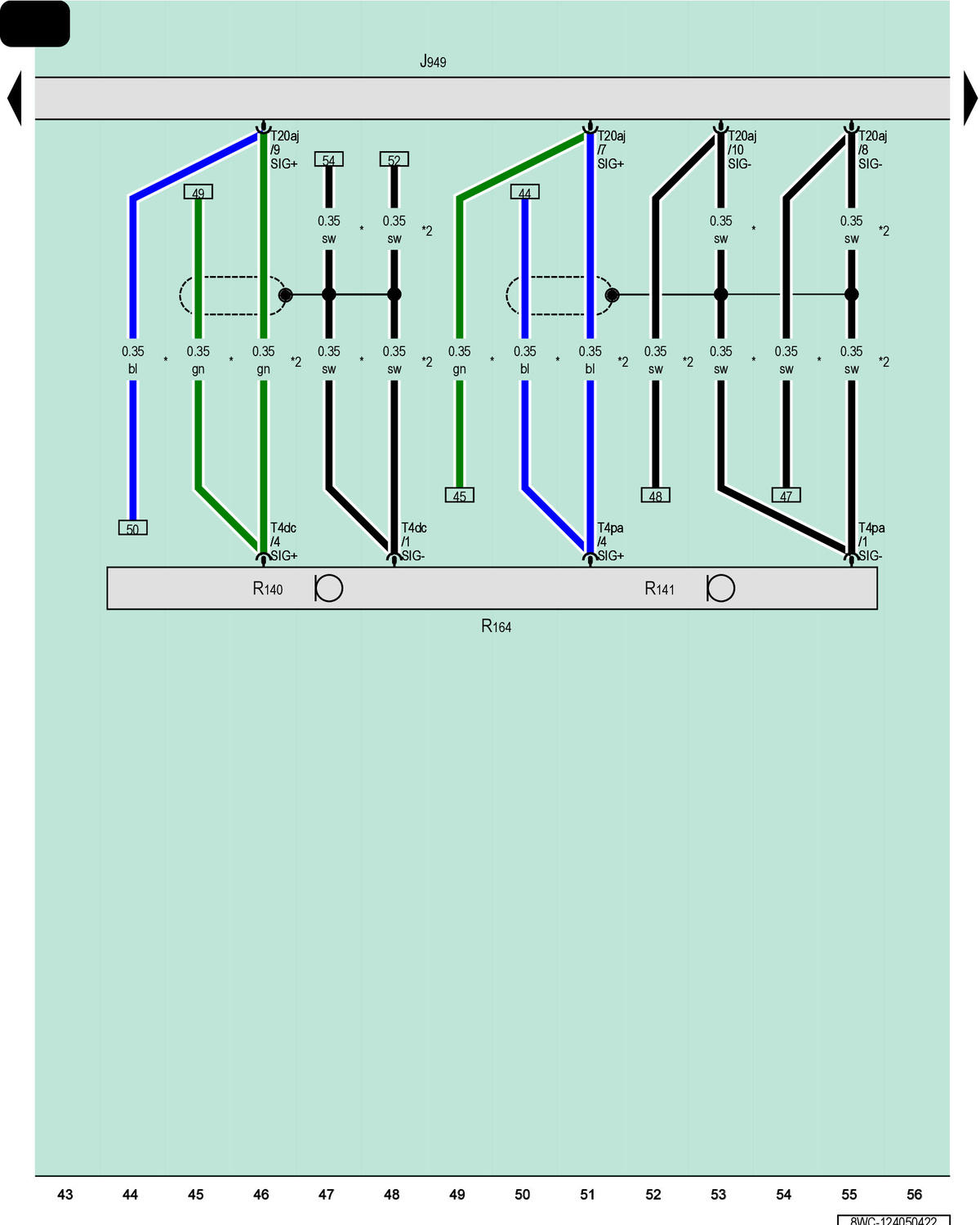

Control Module For Emergency Call Module And Communication Unit, Microphone Unit In Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J949  Control Module for Emergency Call Module and Communication Unit

R140  Left Front Microphone

R141  Right Front Microphone

R164  Microphone Unit in Front Roof Module

T4dc  4-Pin Connector, Gray

T4pa  4-Pin Connector, Blue

T20aj  20-Pin Connector, Naturally Cloudy

*  For LHD Vehicles

*2  For RHD Vehicles
